[ARC5] TEL A - TEL B

[Michael Hanz]

On 10/10/2018 4:51 PM, AKLDGUY wrote:
> A friend has an AN/ARC-5 two receiver rack in which he mounts two
> receivers. He wants to know what the toggle switches at the front of
> each half do. They operate to left and right and are labelled TEL A
> and TEL B with arrows pointing to left and right headphone jacks. I'm
> not familiar with the racks and can't help him. Anyone able to shed light?

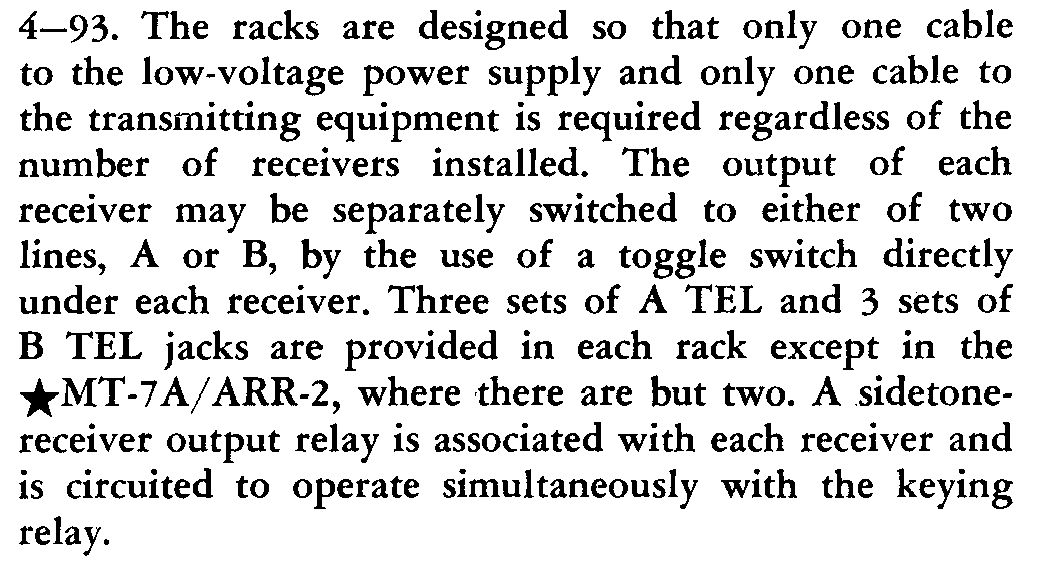

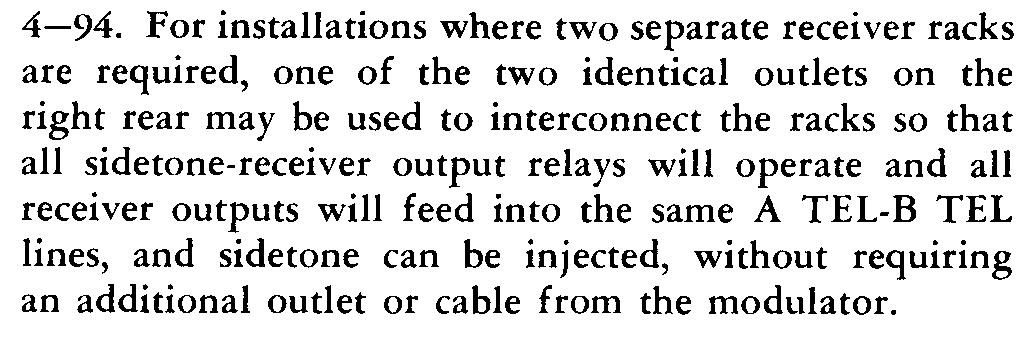

AB5S is correct as usual.  Just to elaborate, from Paragaraphs 4-93 and
4-94 in the ARC-5 manual:

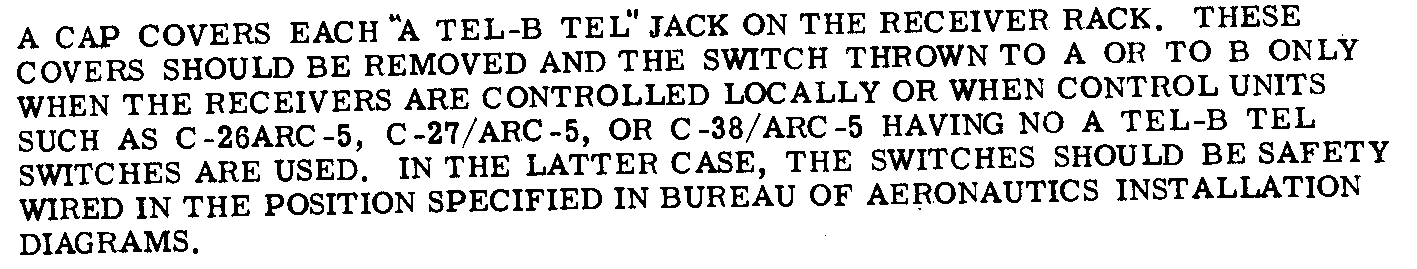

Now, having said that, the manual further cautions in Figure 8-55 (pages
235/236):



The best way to decide whether your friend needs to go to the extra
effort is by consulting the various configurations that I posted as nine
single page diagrams at
http://aafradio.org/docs/ARC-5-HF_manual_Figure_8-55_sheets.html

They are a lot easier to trace.

             73,
  - Mike  KC4TOS
