[ARC5] Question on AC Power Supply for LM

[Michael Hanz]

On 7/17/2018 10:51 AM, Joel R Roberts wrote:
>  Looking at the AC Plug on the front of the LM Power Supply, what is
> the correct connection pinout for the  AC power cable? I would like to
> get my LM working on this supply instead of the Dynamotor.
> Thanks,,,,Joel  KB0FPT

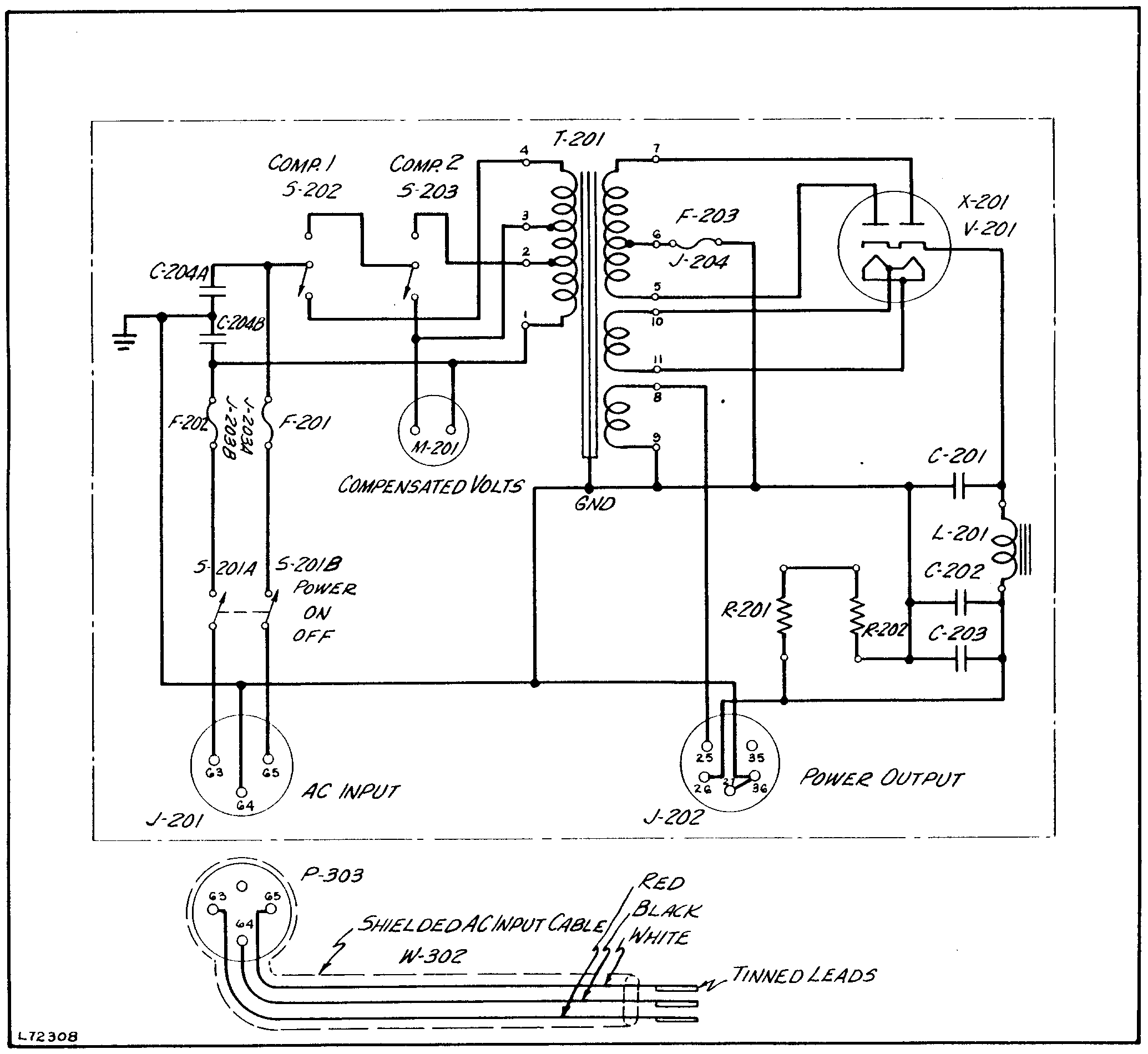

CRR-20104 rectifier schematic attached.

73,
Mike  KC4TOS
