[ARC5] Quieting A DC/DC Converter

[David Stinson]

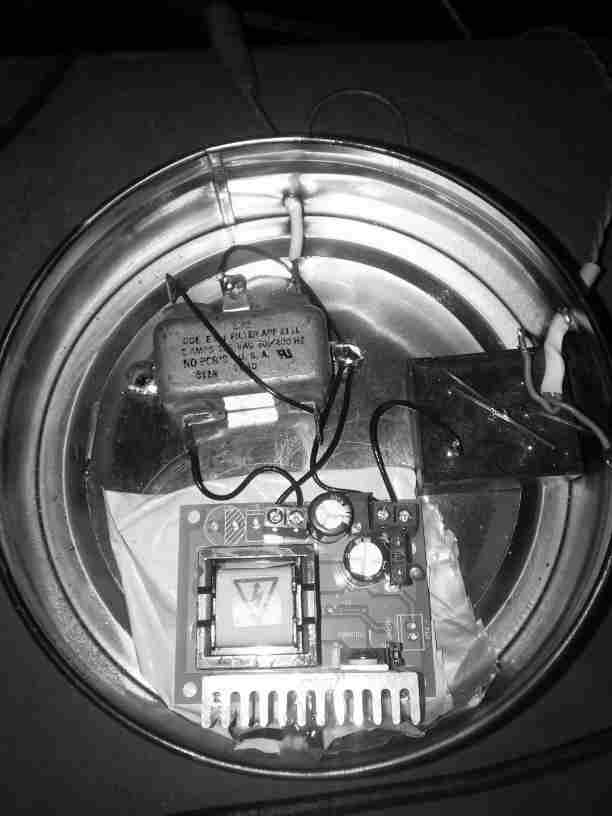

Needed a 140V supply for the AR8 receiver, so put

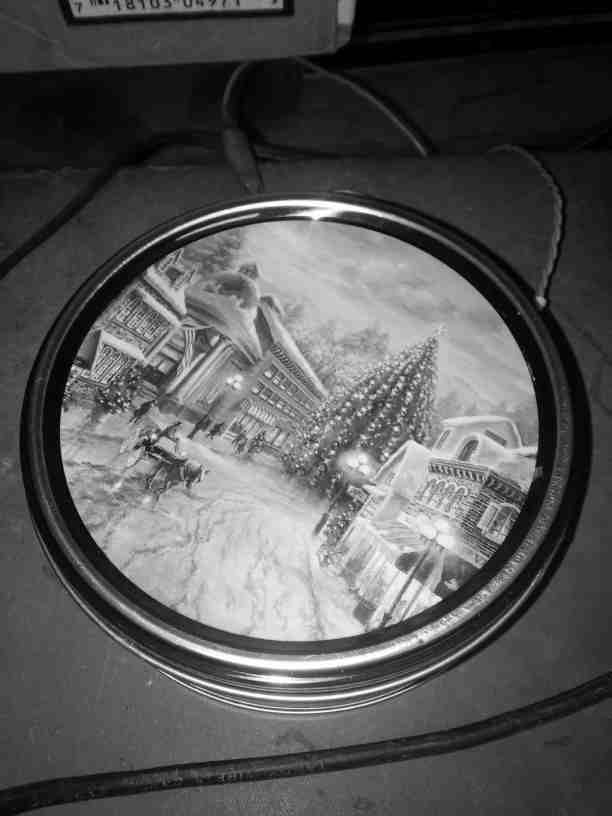

one of these DC/DC things in a very expensive box.
Line filters in and out.  Don't have the
feed-through caps yet so some birdies leaking by,
but ferrites on the leads knocked them way down.
Clean on MF and 160-75-40, some light hash above
about 15 MC.  We'll see how it goes with the
feedthrus.
73 Dave S.


-------------- next part --------------
A non-text attachment was scrubbed...
Name: 20180127_084718_resized.jpg
Type: image/jpeg
Size: 30488 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20180127/5ccb666e/attachment-0002.jpg>
