[ARC5] Fw: FW: Need parts for the Memphis Belle

[Michael Hanz]

Some of the -C models apparently did have a 28 volt buss, but I thought
the big change came with the -D model.  In any case, the Memphis Belle

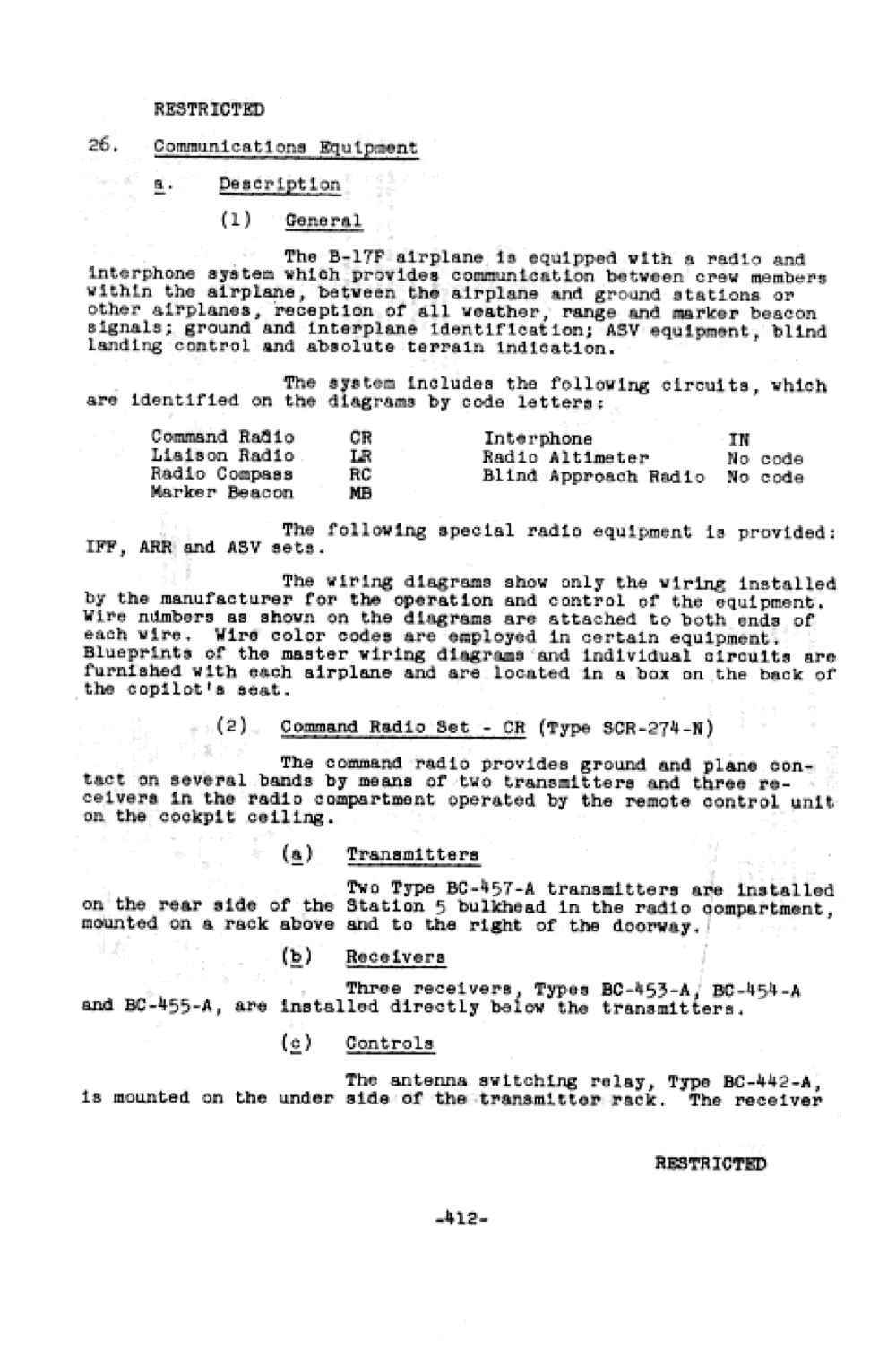

was reportedly a B-17F-10-BO accepted by the USAAC on 15 July 1942.  The
manual excerpt (attached) says its liaison receiver was a BC-348-H.
Which does make one wonder why they want to obtain what is today one of
the rarest 1936 models of the entire BC-224/348 family of receivers.
Perhaps not destined for the MB at all?

  - Mike  KC4TOS

On 7/23/2017 2:13 AM, WA5CAB--- via ARC5 wrote:
> They did.  Although I either don't remember or never knew at what
> model the change was made.  So did early C-47's and R4D's.  They must
> have had SCR-183's and 187's instead of SCR-274-N's and 287's.
>
> Robert Downs - Houston
> wa5cab dot com (Web Store)
> MVPA 9480
>
> In a message dated 07/23/2017 00:36:59 AM Central Daylight Time,
> scottjohnson1 at cox.net writes:
>> I believe the B-17 originally had a 12 Volt buss, and if memory
>> serves 24V came with the C model, , but it might have been later.


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170723/8ed70e03/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: B-17_Page_01.jpg
Type: image/jpeg
Size: 116366 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170723/8ed70e03/attachment-0001.jpg>
