[ARC5] solid state replacements for the BC-348

[Dave Jackson]

Bob:



I’ve attached the files for the transistorized version of various tubes in the BC-348.



Let me know if they survive the server spam sw.



73,

Dave, WA4OBJ



From: ARC5 [mailto:arc5-bounces at mailman.qth.net] On Behalf Of Robert Weaver
Sent: Tuesday, January 03, 2017 11:40 AM
To: ARC5 at mailman.qth.net
Subject: [ARC5] PDF files



Who is it that has the PDF files that is willing to share with the group for the solid state replacment's for the BC-348? Could someone please email me the correct name and email address for that individual ?

Thanks

73

Bob W1GTH

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

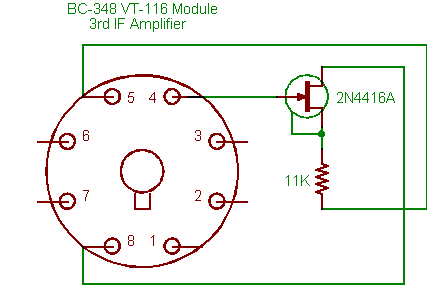

Name: BC348_VT116_IF3.gif
Type: image/gif
Size: 3876 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0007.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

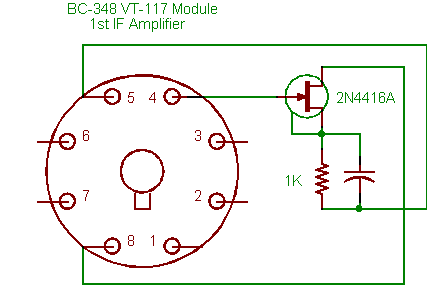

Name: BC348_VT117_IF1.gif
Type: image/gif
Size: 3978 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0008.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: BC348_VT117_IF2.gif
Type: image/gif
Size: 3873 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0009.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

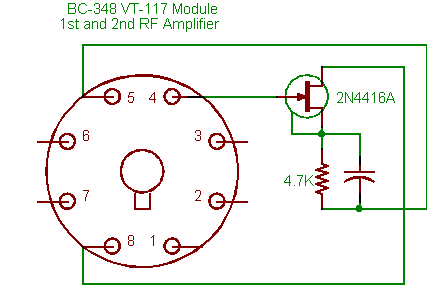

Name: BC348_VT117_RF.gif
Type: image/gif
Size: 4095 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0010.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

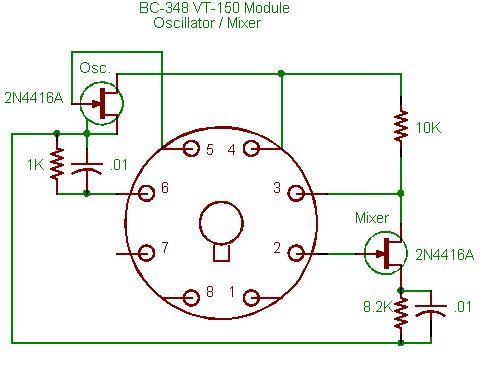

Name: BC348_VT150_OSC.gif
Type: image/gif
Size: 5291 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0011.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

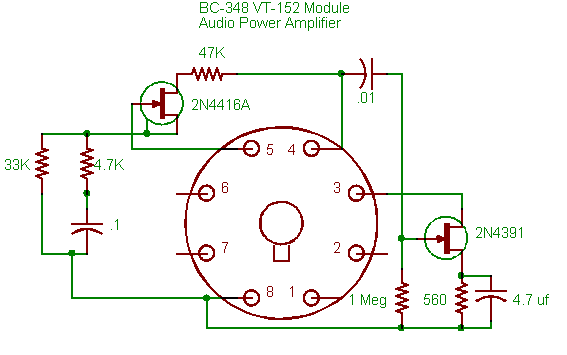

Name: BC348_VT152_AF.gif
Type: image/gif
Size: 5646 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0012.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

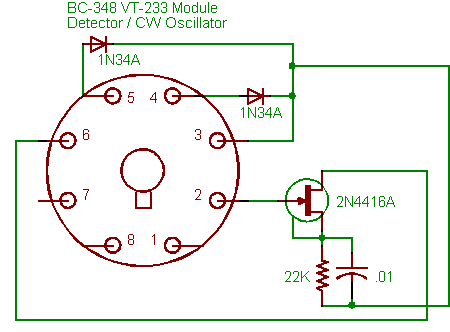

Name: BC348_VT233_DET.gif
Type: image/gif
Size: 4810 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20170103/38a4262a/attachment-0013.gif>
