[ARC5] [Milsurplus] Carbon mic pops

[hwhall at compuserve.com]

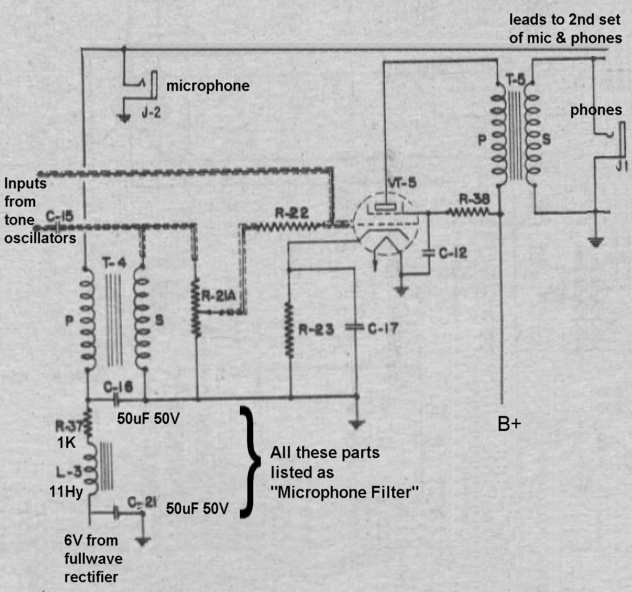

Attached is the schematic of the mic circuit & amp that I'm looking at. The mic internal wiring looks like just a set of PTT contacts in series with the carbon mic button + the small cap across the mic button.

The primary of T-4 has no current thru it until one of the mics is keyed, then suddenly current flows thru primary & carbon mic, inducing a transient in T-4 that appears as a loud initial pop in the headphones. I don't see how they prevented this pop from happening every time a mic was keyed.

By hitting Send I'm about to remind myself whether these forums allow images attached.  :-\





Wayne
WB4OGM
