[ARC5] Tuning up BC-230 and ARC-5

[David Stinson]

>The SCR274 and ARC5 types have a sweet spot antenna reactance
>range where the roller inductor is >effective. Too much or too
>little reactance and I have difficulty getting it to load.The
>ARCs will load into >a pure 5-10 ohm resistance if the inductor
>is at zero. Not sure if that would work on the BC230, >though.
>Loading them into REAL antennas gets even more interesting!

Folks, no offense, please.
But I do not understand the resistance to the simple solution
for this I've published many, many times.

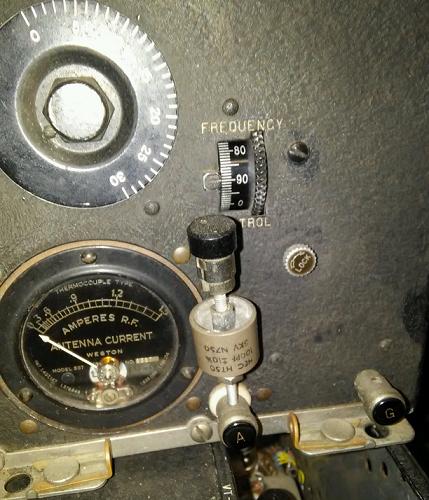

If you're on 40 meters, put a 50 pFd high-voltage cap in
series with the antenna output to the 50-ohm antenna.
If you're on 80 meters, use 100 pFd.
If on a TCS, 100 pFd will work for both.

Tunes up like a boss.  To full power.  Every time.
Please trust me on this.  I don't know or much care
about the theory.  It just works.

73 DE Dave AB5S
