[ARC5] Crystal tester.

[Michael Hanz]

Actually, there were _three_ of them, covering 2.5kHz to 1100kHz (TS-537
- TM 11-5052), 0.8 to 15MHz (TS-330 - TM 11-6625-536-14), and 10 to
110MHz (TS-683  - TMs 11-6625-456-14, -40P,  and TM 11-5051).  The
latter is curious in that it has bands for 10-140MHz but the tag sez
10-110MHz.  They were made by Radio Frequency Laboratories in Boonton,

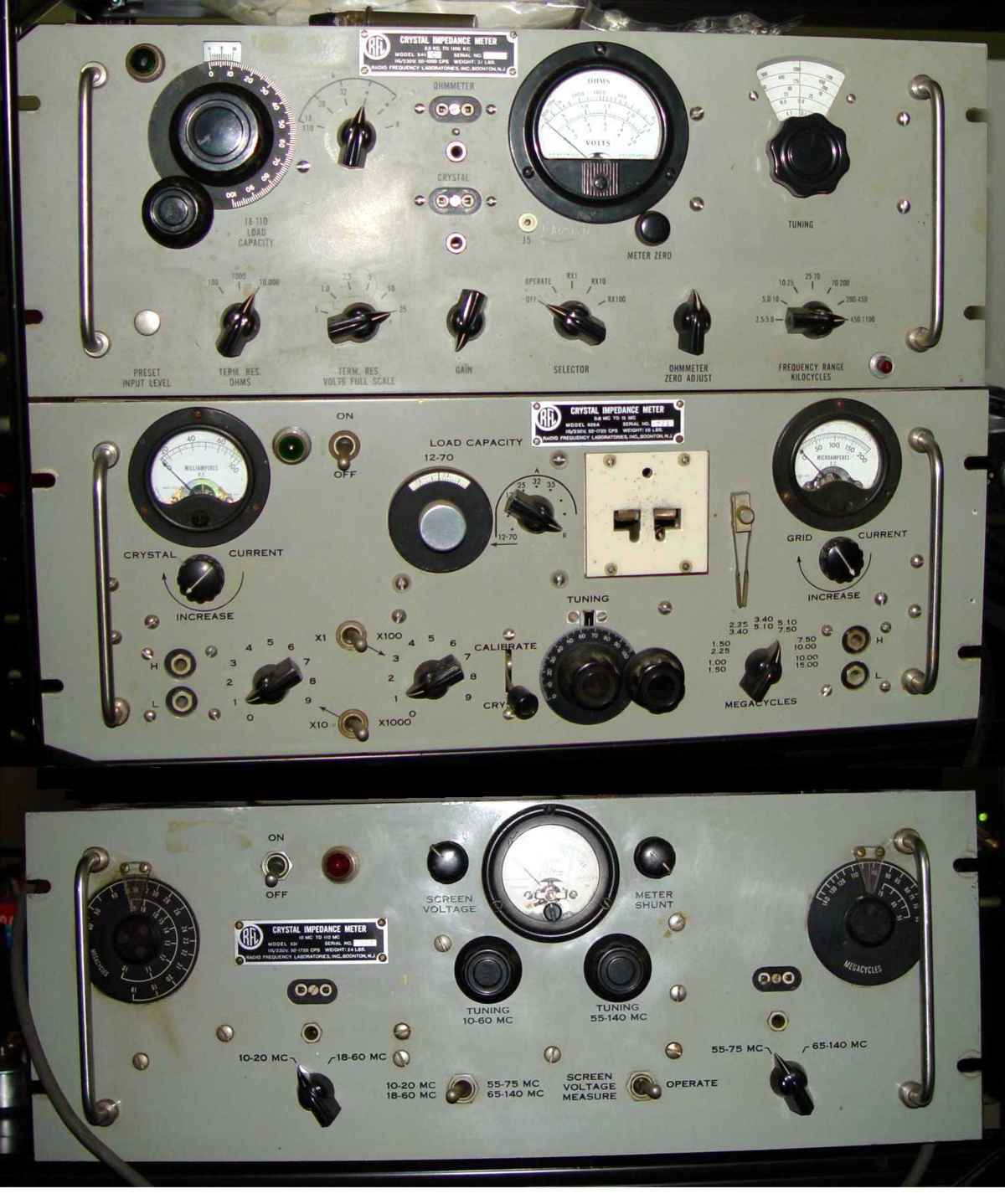

NJ.  See attached photo.

Mike  KC4TOS

On 6/12/2016 12:04 AM, WA5CAB--- via ARC5 wrote:
> Probably TS-330/TSM.  Covers 0.8 to 15 MC.
>
> In a message dated 06/11/2016 17:57:20 PM Central Daylight Time,
> kgordon2006 at frontier.com writes:
>> The military had a good crystal-test unit, but I cannot remember its
>> nomenclature.
>>
>> Ken W7EKB
>>
>>
>

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20160612/f857a014/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Crystal_Impedance_Meters-2.JPG
Type: image/jpeg
Size: 136326 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20160612/f857a014/attachment-0001.jpe>
