[ARC5] SCR-274N in a B-25

[J Mcvey]

I have seen pictures of installtions but never the drawings! Very interesting to see what they used to build the aircraft.However, they show, but don't specify the position or cable routing for the BC-456 modular. Does that mean "stick it where you can find a spot"?The pictures usually have it to the left of the TX rack or to the lower left of the operator.


    On Thursday, February 11, 2016 6:52 PM, Taigh Ramey <taigh at twinbeech.com> wrote:

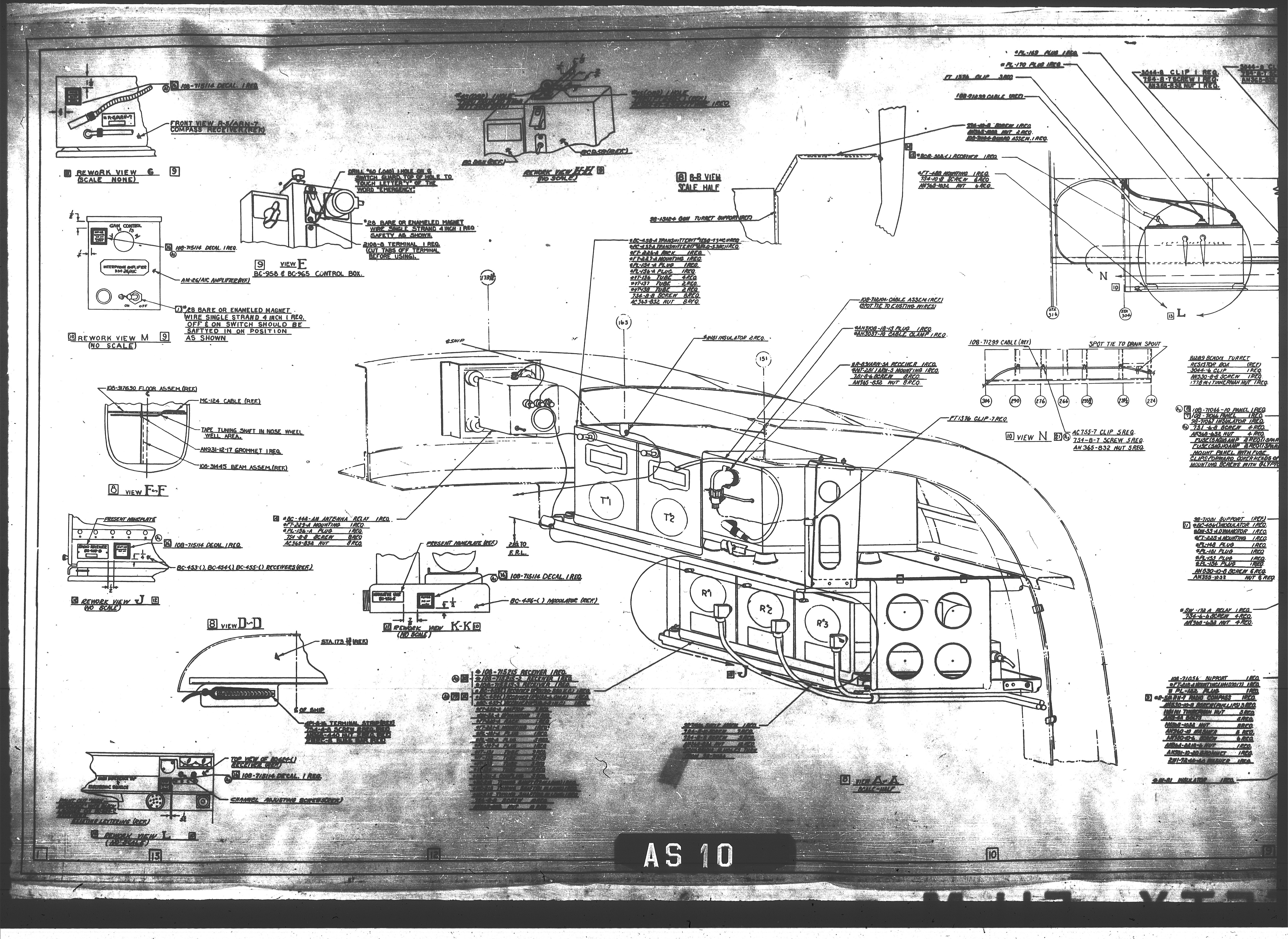

 <!--#yiv7770919650 _filtered #yiv7770919650 {font-family:"Cambria Math";panose-1:2 4 5 3 5 4 6 3 2 4;} _filtered #yiv7770919650 {font-family:Calibri;panose-1:2 15 5 2 2 2 4 3 2 4;}#yiv7770919650 #yiv7770919650 p.yiv7770919650MsoNormal, #yiv7770919650 li.yiv7770919650MsoNormal, #yiv7770919650 div.yiv7770919650MsoNormal {margin:0in;margin-bottom:.0001pt;font-size:11.0pt;font-family:"Calibri", sans-serif;}#yiv7770919650 a:link, #yiv7770919650 span.yiv7770919650MsoHyperlink {color:#0563C1;text-decoration:underline;}#yiv7770919650 a:visited, #yiv7770919650 span.yiv7770919650MsoHyperlinkFollowed {color:#954F72;text-decoration:underline;}#yiv7770919650 span.yiv7770919650EmailStyle17 {font-family:"Arial", sans-serif;color:#44546A;font-weight:normal;font-style:normal;text-decoration:none none;}#yiv7770919650 .yiv7770919650MsoChpDefault {font-family:"Calibri", sans-serif;} _filtered #yiv7770919650 {margin:1.0in 1.0in 1.0in 1.0in;}#yiv7770919650 div.yiv7770919650WordSection1 {}-->I came across an interesting production drawing from North American Aviation showing the SCR-274N installation in the B-25J. There are other radios listed too as this was a general radio installation drawing.   Of particular interest is the location of NAA part numbered decals on the GFE radios at specific locations. You all may have radios marked like this in your collection. I do not have access to the specific decal but I suspect it is the low impedance decal that I have seen on radios in a similar location.  http://www.twinbeech.com/images/Aircraft/manufacturers/northamerican/b-25series/radio/21half.jpg  Taigh  Taigh RameyVintage Aircraft Inc.7432 C.E.Dixon StreetStockton, California 95206(209) 982-0273(209) 982-4832 Faxwww.twinbeech.comKEEP 'EM FLYING...FOR HISTORY!
