[ARC5] Buffalo

[David Stinson]

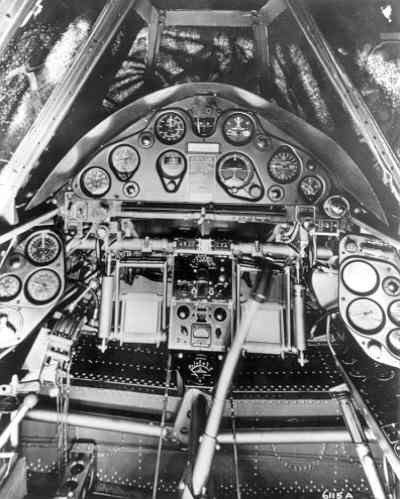

Cockpit front panel of a Buffalo used in the Finn-Russian
conflict.  Note Western Electric Light Aircraft pair in
lower center.  Receiver is tunable superhet LW/MW/SW.
Under it is crystal-controlled transmitter with 6L6 oscillator
and 6L6 PA.  The two black, round shapes are the metal
6L6s mounted horizontally.  I have these radios and their
dynamotor/modulator mounted in an unusually-shaped
chassis designed to be fitted in a Dutch armored vehicle.
Will post photo if I can find it.

73 Dave AB5S.
