[ARC5] Special phone jack needed for a friends Stinson L-5

[Taigh Ramey]

Great info Mike. Bill's attention to detail on his L-5 is right up there and
he loves to learn as much as he can about this stuff. I am sure he
appreciates your info and help.

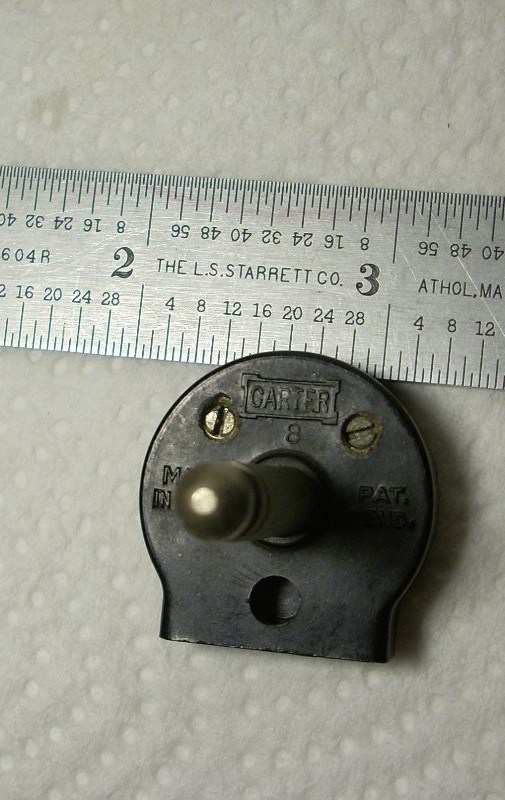

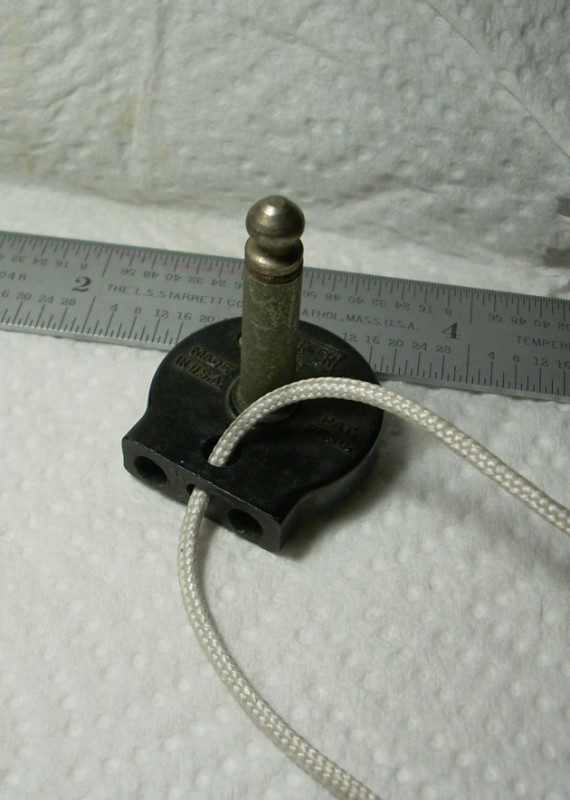

Roy has what looks like the exact connector in his collection. Photos here:

http://www.twinbeech.com/images/temp/aweb.jpg

http://www.twinbeech.com/images/temp/cweb.jpg

Now if we can just locate one for Bill and his L-5. Hopefully it's the same
one Roy found at Oldradioparts.

Thank you all for your help!

Taigh

Taigh Ramey
Vintage Aircraft Inc.
7432 C.E.Dixon Street
Stockton, California 95206
(209) 982-0273
(209) 982-4832 Fax
www.twinbeech.com
KEEP 'EM FLYING...FOR HISTORY!

-----Original Message-----
From: ARC5 [mailto:arc5-bounces at mailman.qth.net] On Behalf Of Mike Morrow
Sent: Tuesday, August 04, 2015 7:18 AM
To: Taigh Ramey <taigh at twinbeech.com>; 'ARC-5' <arc5 at mailman.qth.net>;
milsurplus at mailman.qth.net
Subject: Re: [ARC5] Special phone jack needed for a friends Stinson L-5

----Original Message-----
>From: Taigh Ramey <taigh at twinbeech.com> A friend is restoring a Stinson
>L-5 Sentinel in Colorado. He has had the project for 10 years and just
>got her flying and it now has 5 hours of flying time since restoration.
>
>He is putting the correct radios in her and they will work too. He just
>asked me if I knew where he could find the phone plug that is sh
>From: Taigh Ramey <taigh at twinbeech.com> A friend is restoring a Stinson
>L-5 Sentinel in Colorado. He has had the project for 10 years and just
>got her flying and it now has 5 hours of flying time since restoration.
>
>He is putting the correct radios in her and they will work too. He just
>asked me if I knew where he could find the phone plug that is shown on
>the front of the Setchell Carlson radio. The link below shows the
>installation from the manual and the connector/plug sought:
>
> http://www.twinbeech.com/images/temp/L-5%20radio7272015.jpg
>
>Any ideas where he could get such a plug to help him with complete his
>Stinson? Any help is greatly appreciated.

Odd...I could swear that the photo at the above URL changed between the two
times I looked at it.  :-)

I don't know a source for such a plug.

With such attention to detail, I'm sure your friend is aware that the
receiver is not a common BC-1206-C (S-C Model 524, 28 vdc), but rather the
rarer R-76/ARR-13 (S-C Model 512, 14vdc, 250 vdc).  The AN/ARR-13 was
required on 14 vdc aircraft and got its HV from the AVA-126 power supply
that the AVR-20-A1 HF receiver used.  The AN/ARR-13 manual explicitly
describes the modification of the AVA-126 for this.  This receiver has only
two conductors at its phone plug, so as you suggest the third lead into the
phone connector must be strain relief.

The photo is interesting for showing the antenna switch between the two
receivers.

Mike / KK5F
