[ARC5] [Milsurplus] [Vintage-Military-RADAR] WTD: Odd RF Connector

[J. Forster]

Hi Dennis,

Could you scan the info please. It's pretty rare and posting it somewhere
would be useful to many.

If you email to me, I can put it on the VMR Group site.

Best,

-John

==================


> Mike, John,
>
> The cable end looks just right comparing it to the illustrations in my
> Radios Master.  The mating piece in the picture looks like something
> Amphenol called an "Antenna Cable End Terminal"  93-M5.  Only apparent
> difference between that and the 93C Female Chassis unit would appear
> to be the strap like appendage hanging off the body of the unit.
>
> Dennis D.  W7QHO
> Glendale, CA
>
> *****************
> On Jul 12, 2011, at 2:04 PM, Mike Hanz wrote:
>

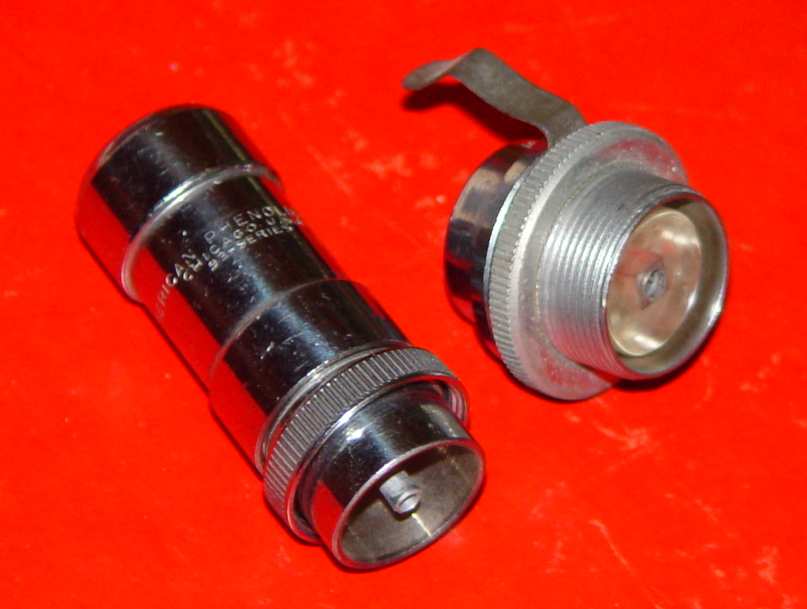

>> Only thing I could find in my storage area is something made by a
>> little
>> known company called American Phenolic Corporation. :-D   It does
>> say 93
>> series on it.  Chassis mount provided at no additional cost.
>>
>> Photo at http://aafradio.org/sidebar/93_series.JPG
>>
>> What's your address?
>>
>> 73,
>> Mike  KC4TOS
>>
>> On 7/12/2011 4:37 PM, J. Forster wrote:
>>> You're right. The only doc I have is the Parts List for the receiver,
>>> which shows the 93C.
>>>
>>> The thing I'm looking for is the Male, cable connector...  the 93M.
>>> The Navy number for the connector, from the manual, is CPH-49567
>>>
>>> ===================
>>>
>>>> John,
>>>>
>>>> According to my 1943 Radios Master the Amphenol 93C was a chassis
>>>> mount female connector.  Your mention of a "cutoff" being acceptable
>>>> would imply a cable end connector.
>>>> The whole family lines up as follows:
>>>>
>>>> 93M -- Male with coupling ring
>>>> 93MI -- Male with coupling threads
>>>> 93F -- Female with coupling threads
>>>> 93FI -- Female with coupling ring
>>>> 93C -- Female chassis unit
>>>> 93CI -- male chassis unit
>>>>
>>>> Price $1.50 - $1.25 each in 1943 BTW
>>>>
>>>> Dennis D.  W7QHO
>
