[Alexandria Radio Club Reflector] George Washington Birthday Parade 2020
Joe Porcelli
porcej at gmail.com
Thu Feb 13 15:34:20 EST 2020
Hey folks,
Just got back from Fire Station 201 (317 Prince St). I have installed the
following equipment at said location:

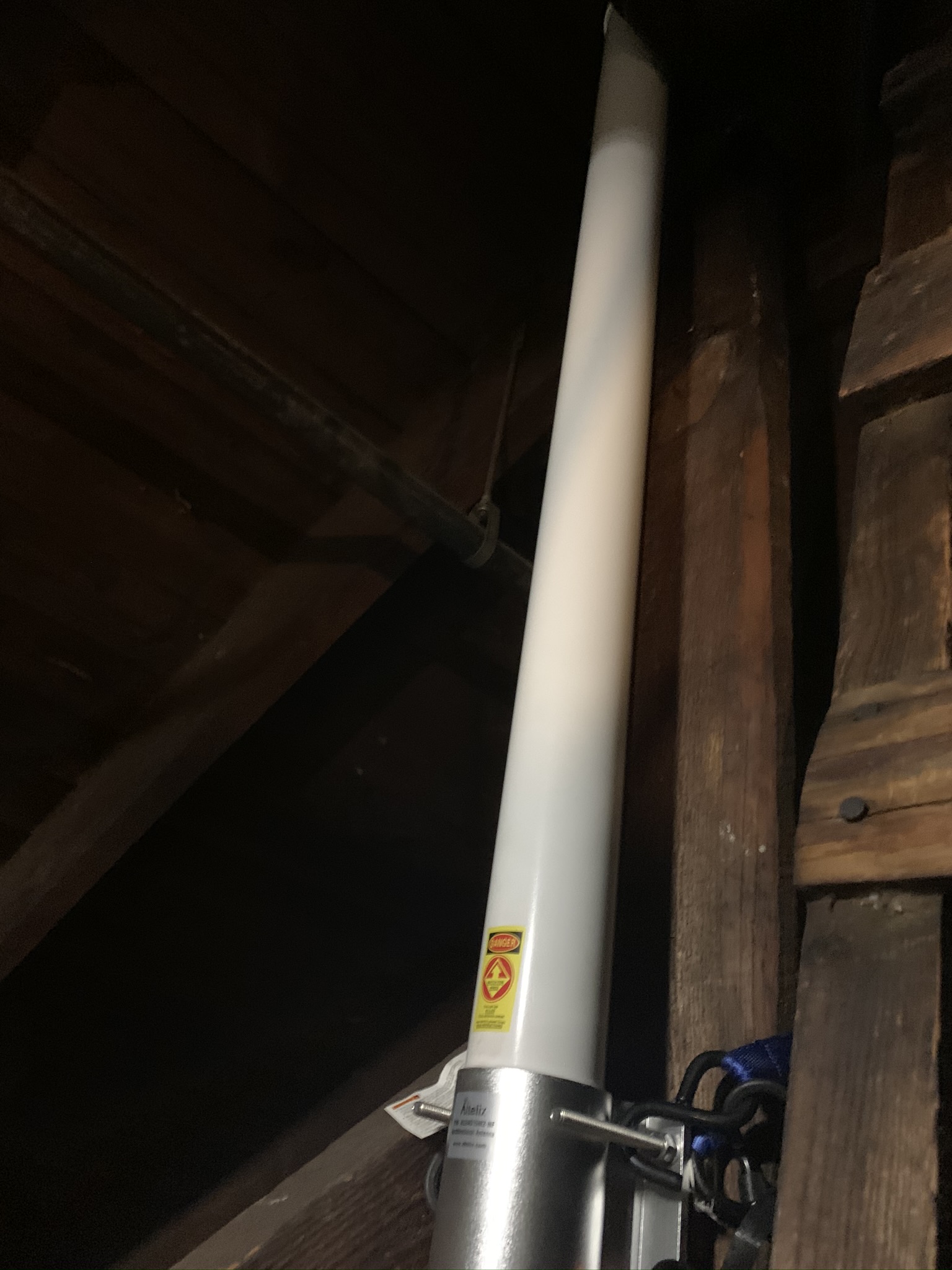

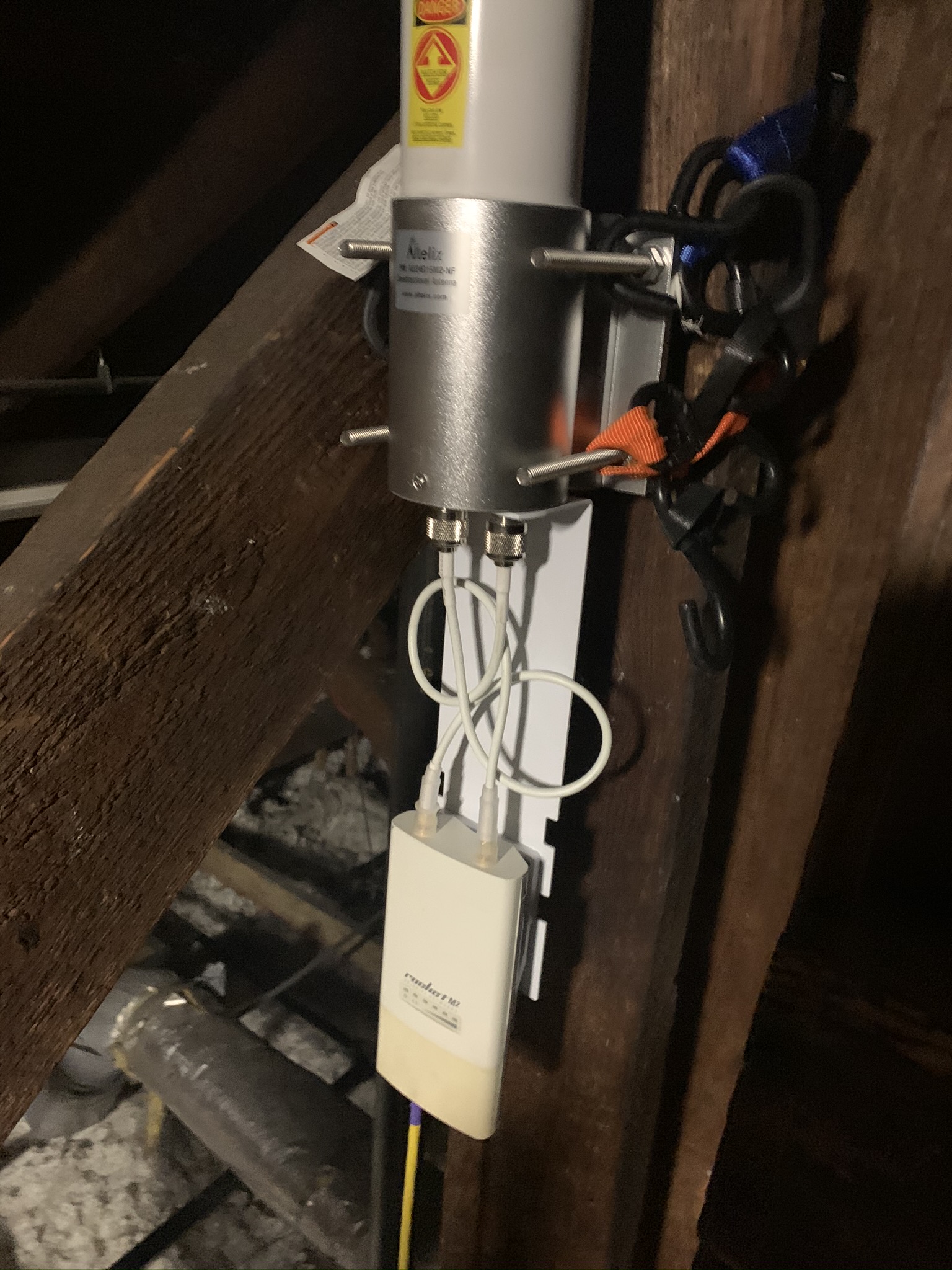

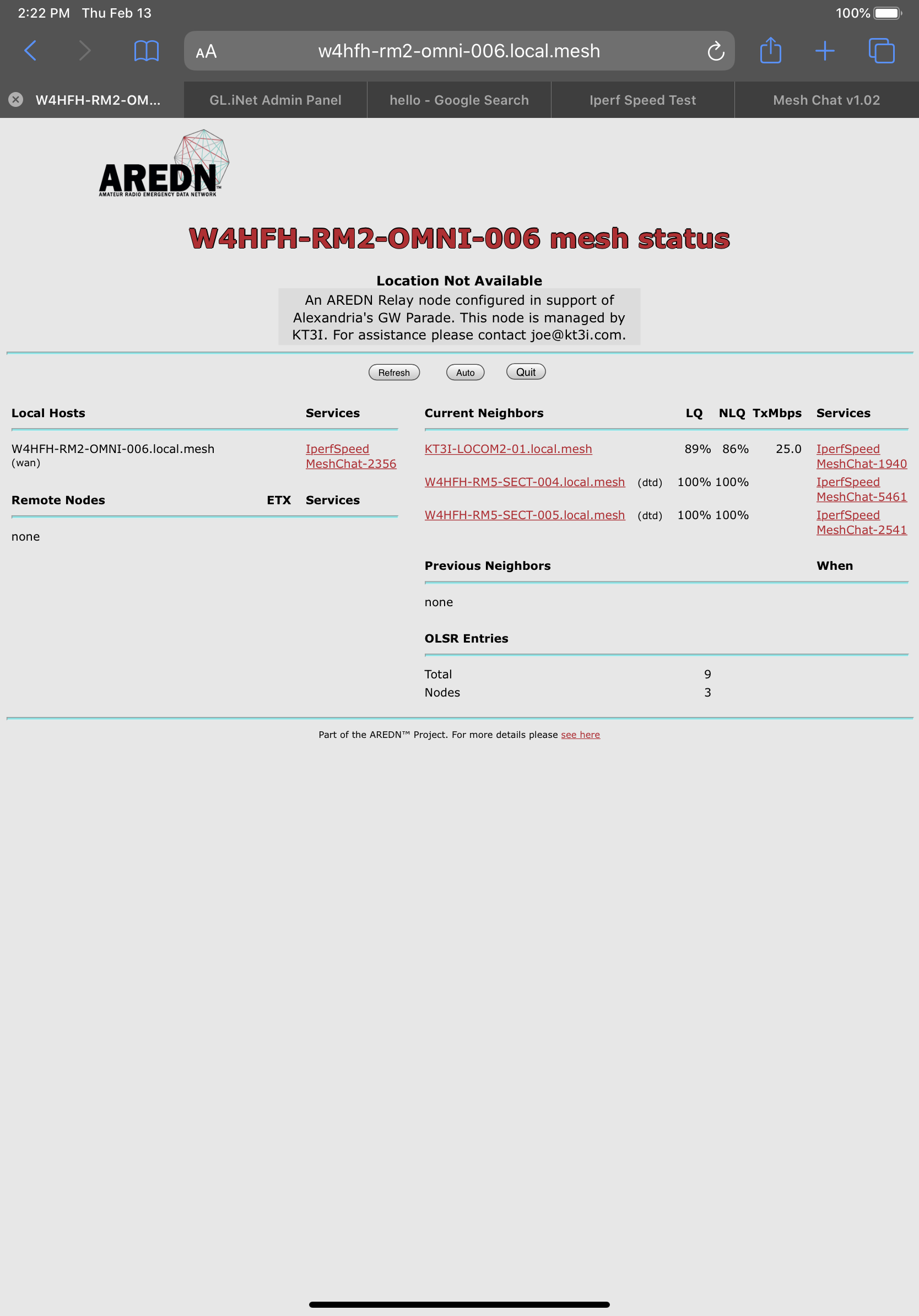

- W4HFH-RM2-OMNI-006 - Rocket M2 with 15dBi Omni Antenna, located in the
attic

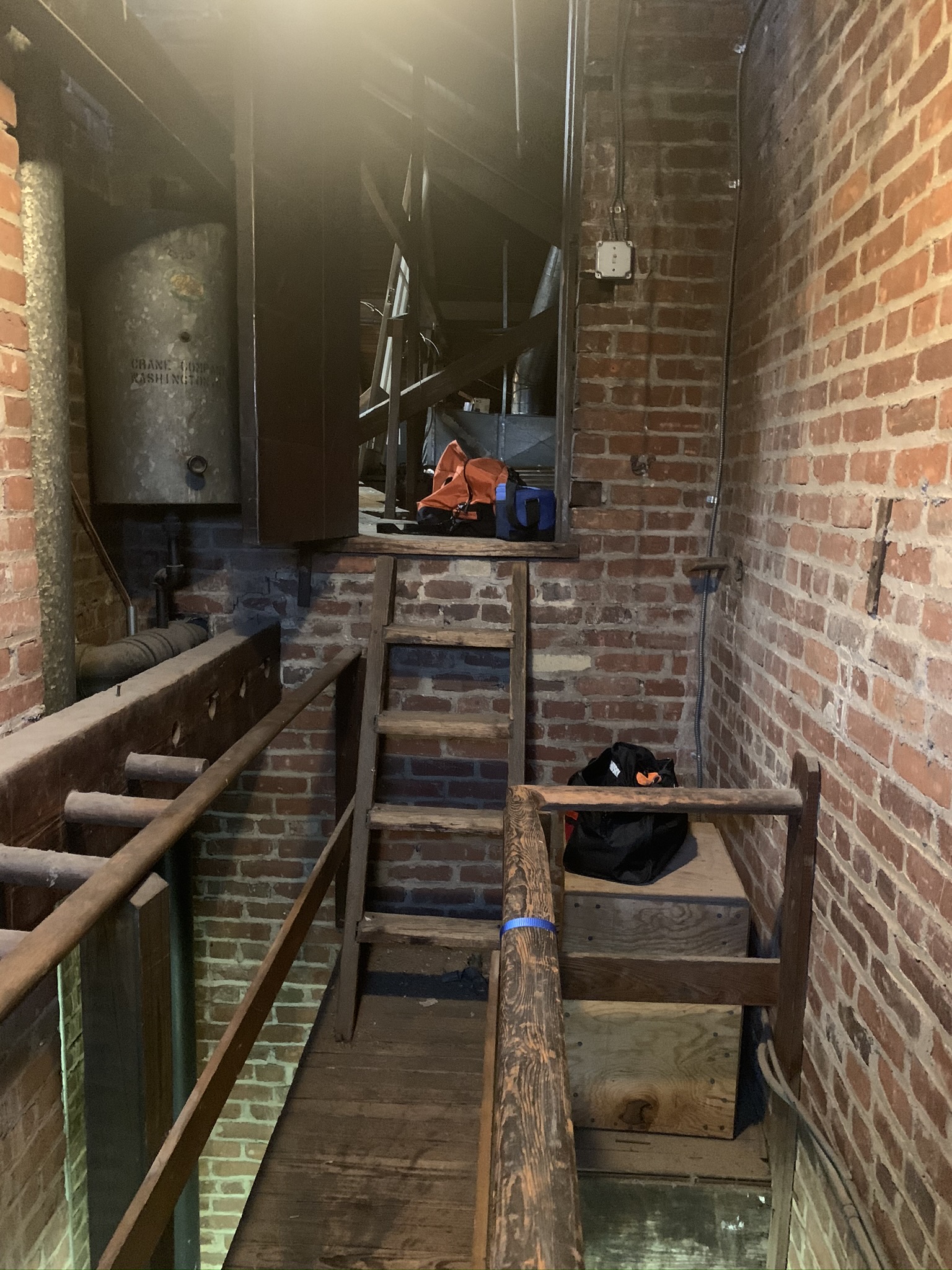

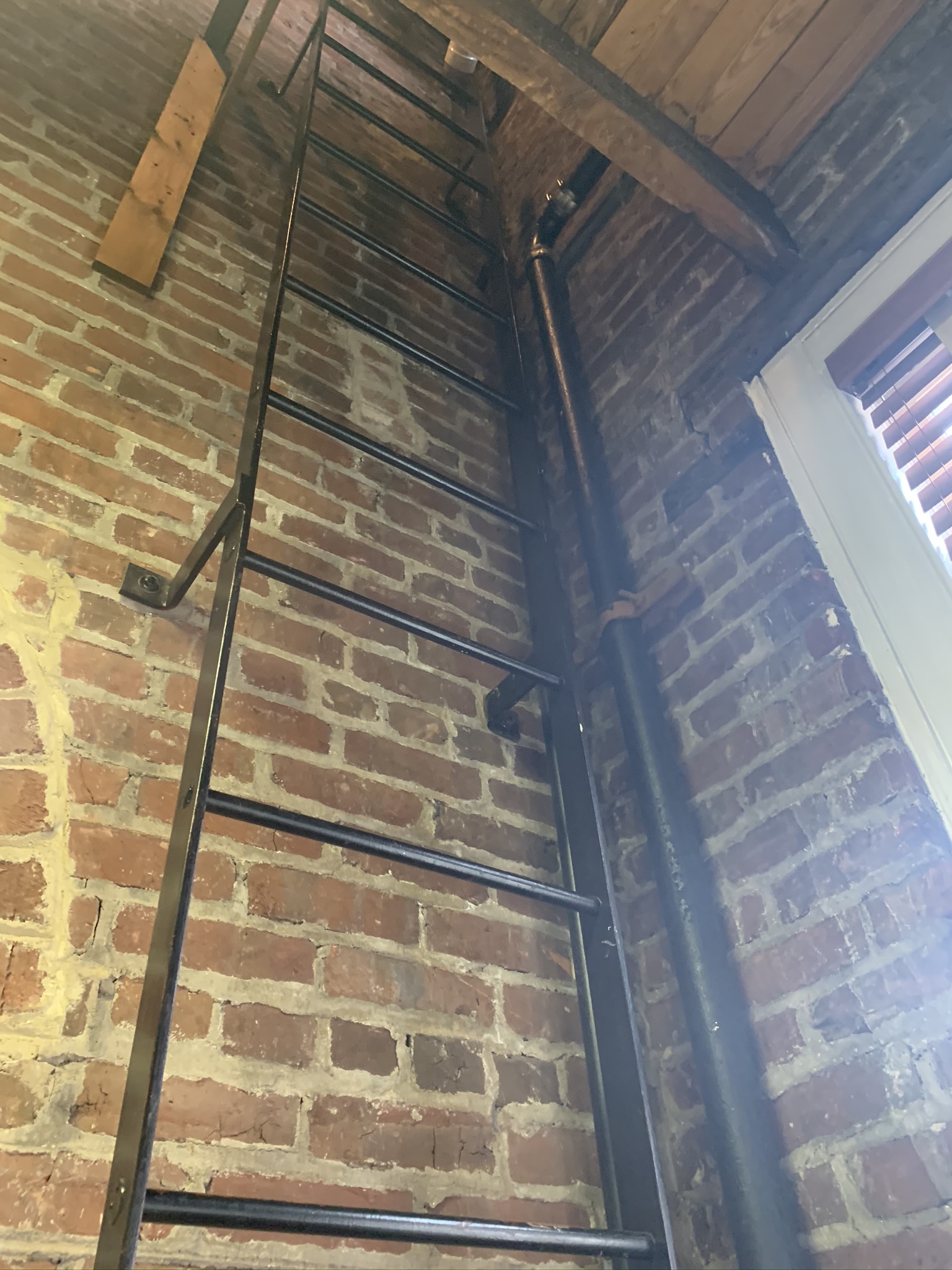

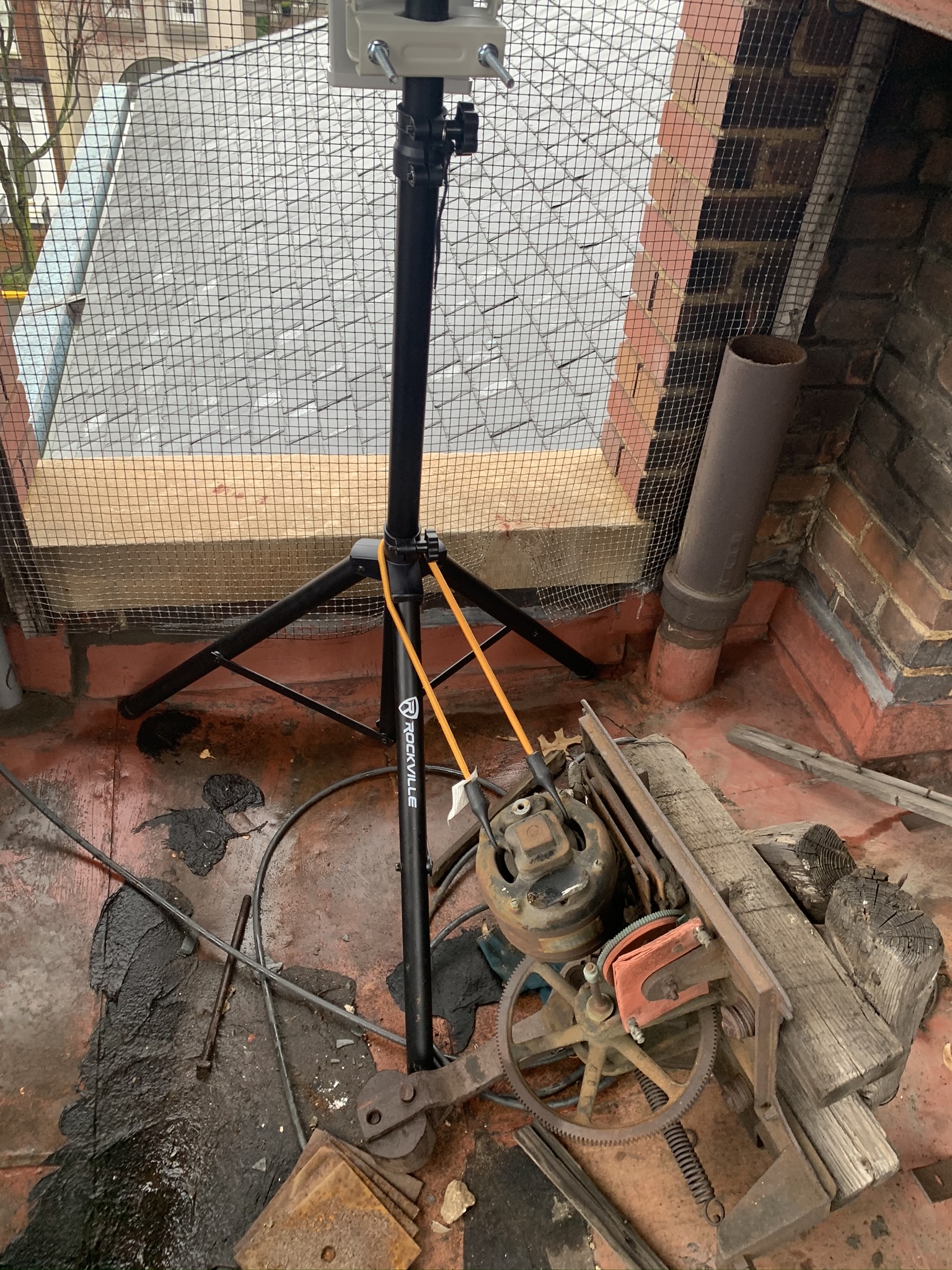

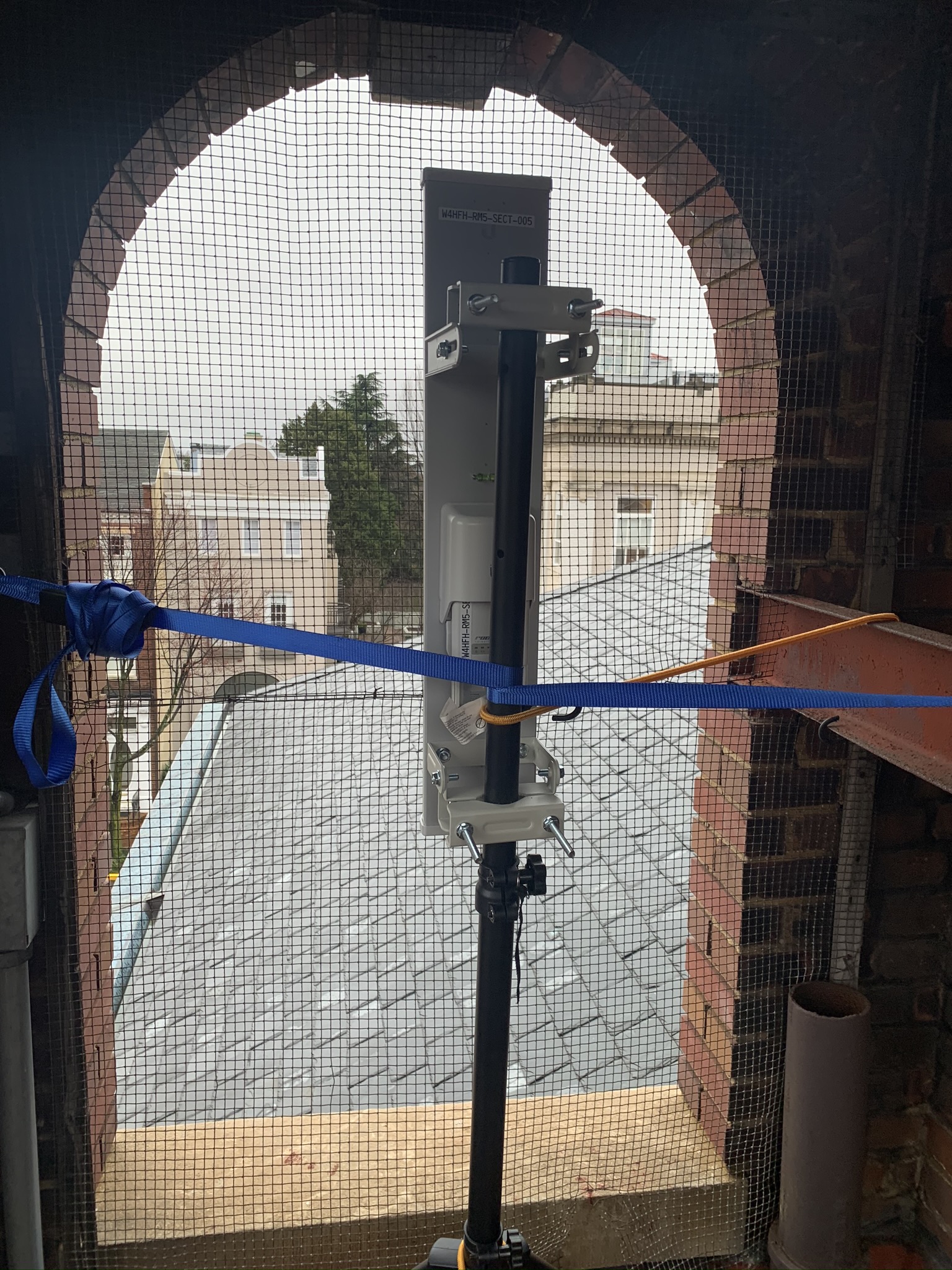

- W4HFH-RM5-SECT-005 - Rocket M5 with 19dBi 120º Sector pointed due
south from the bell tower (eastern side of building)
- W4HFH-RM5-SECT-004 - Rocket M5 with 19dBi 120º Sector pointed due
north from the addition over the bunk-room (north-west corner of building)
- RasPBX - Let me know if anyone wants to play with this

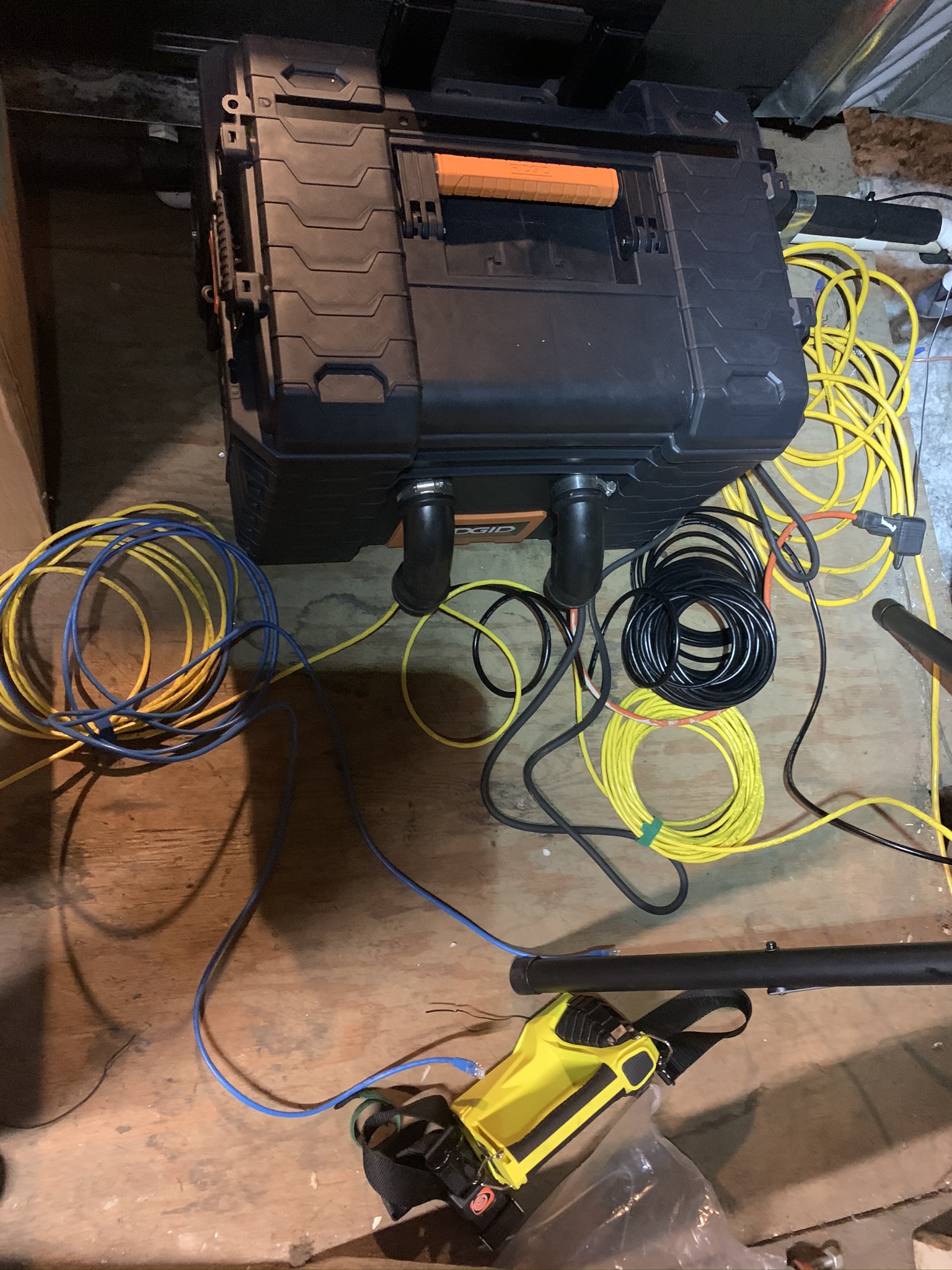

- Managed switch with Vlans setup for each of the 4 nodes + WAN access
- GL-MT300N-V2 - Router connected to Alexandria.Wireless (City of
Alexandria's public Wifi)

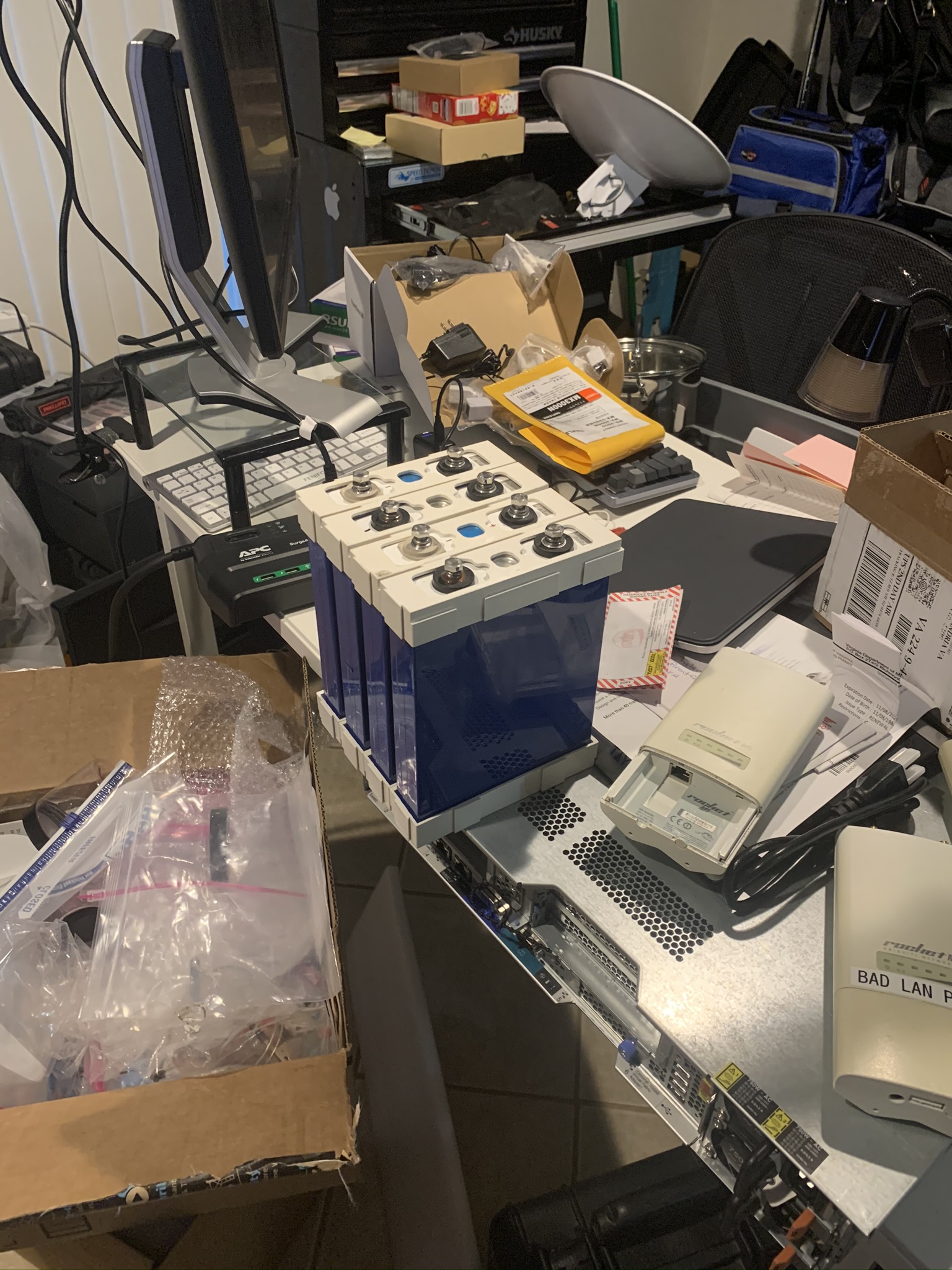

- 200amp/hr LiFePO4 battery
- Remote control relay/raspberry pi to disconnect/reconnect the system
from street source power

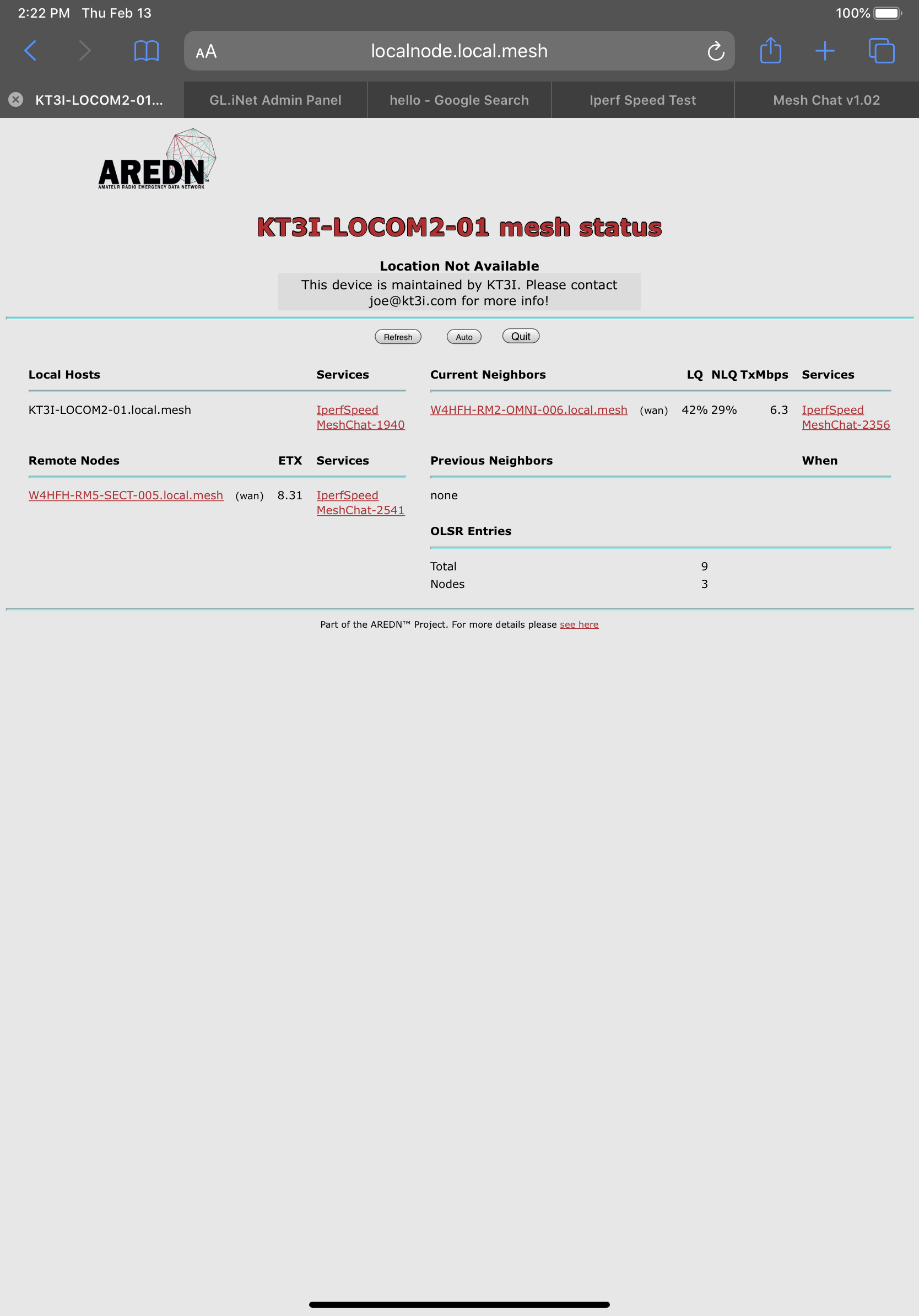

I ran some test to see how the setup would perform over the parade route:

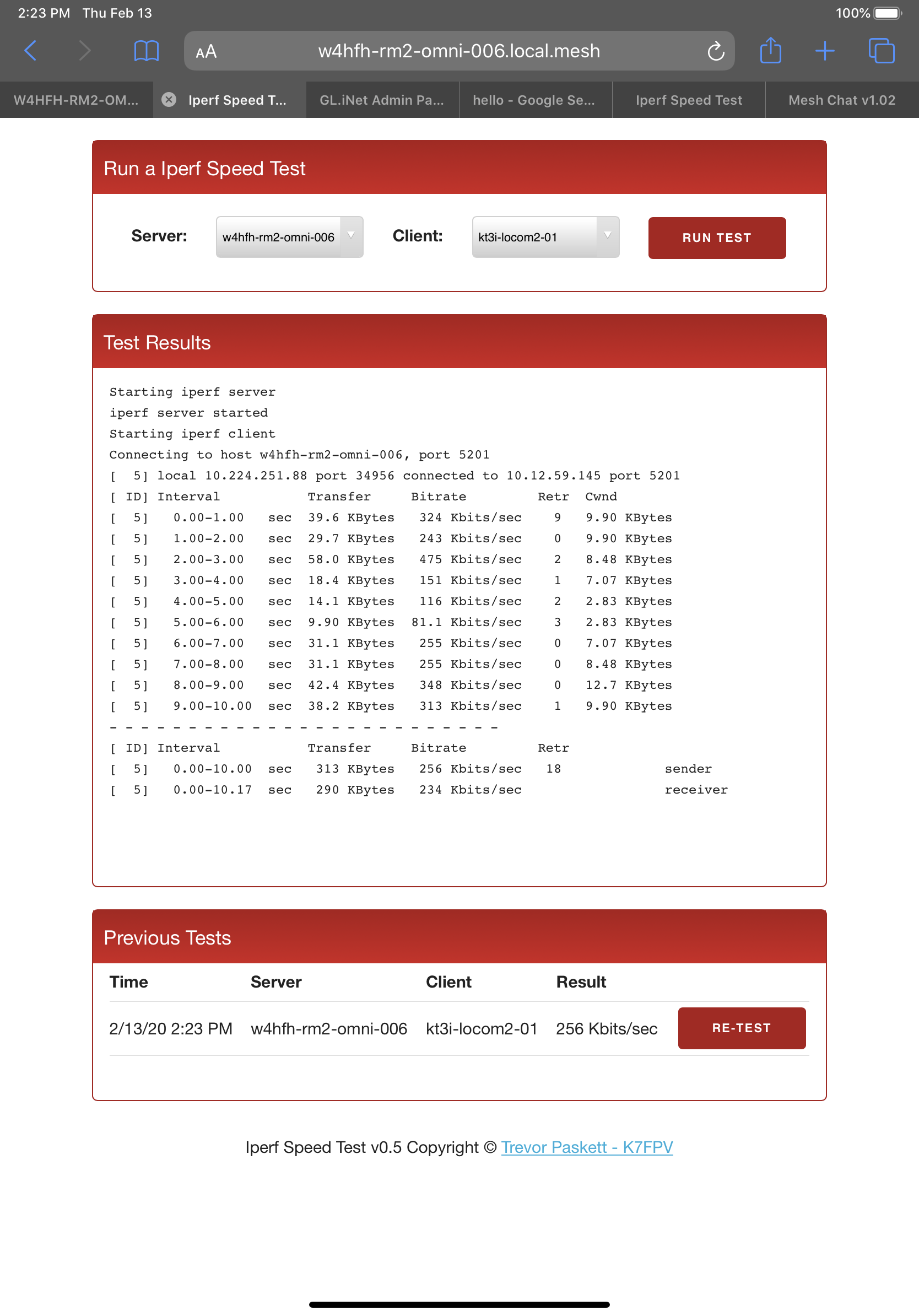

- 2.4GHz from the parking lot of Safeway on S. Royal St yielded a
throughput of 256 Kbits/sec (iPerfspeed). The client was a NanoStation Loco
M2 sitting on the roof of my car.
- 2.4GHz from the corner of Cameron St and N. Royal St yeilded a
throughput of 575 Kbits/sec (iPerfspeed). The client was a NanoStation
Loco M2 sitting on the dashboard of my car.
- I was able to hit the 5.8Ghz nodes from the above two locations using
a Nanotstation M5 again from my car, however I did not run iPerf Speed.
My plan for parade day is to disconnect street source power Sunday morning
and run off of battery power for the parade. The raspberry pi will monitor
the battery bank and switch back to street source power if the voltage
drops below 11% of peak load.
Cheers,
Joe, KT3I
[image: IMG_0006.PNG]
[image: IMG_0007.PNG]
[image: IMG_0008.PNG]
[image: IMG_1233.JPEG]
[image: IMG_1235.JPEG]
[image: IMG_1237.JPEG]
[image: IMG_1244.JPEG]
[image: IMG_1246.JPEG]
[image: IMG_1247.JPEG]
[image: IMG_1250.JPEG]
[image: IMG_1225.JPEG]
[image: IMG_1229.JPEG]
[image: IMG_1236.jpeg]
On Wed, Feb 12, 2020 at 4:10 PM Rick <n4asx at cox.net> wrote:
> Ed,
>
>
> Thanks for responding. Will catch up another time.
>
>
> 73 Rick
>
>
>
>
> Get Outlook for Android
>
>
>
>
>
>
>
> On Wed, Feb 12, 2020 at 1:59 PM -0600, "Ed Colonna" <escolonna at comcast.net>
> wrote:
>
>
>
>
>
>
>
>
>
>
> Rick,
>
> I had hoped to help out on Monday but I’m going to need to work. Also,
> most of my stuff is 5.8GHz so probably wouldn’t help much. Sorry!
>
> Ed, K4ESC
>
> > On Feb 9, 2020, at 20:07, rick wrote:
> >
> > Many thanks, Can you do the reviewing stand? let me know what you need ?
> >
> >
> > 73 Rock
> >
> >
> >
> >
> > Get Outlook for Android
> >
> >
> >
> >
> >
> >
> >
> > On Sun, Feb 9, 2020 at 7:59 PM -0500, "Ian" wrote:
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > I'll be there.73, Ian N8IK
> > On Sun, Feb 9, 2020, 19:08 Don (KI4D) wrote:
> > We had Wilson, Harry, Mark, Rich and me to volunteer at the January
> meeting, however, Mark learned later that he will be on travel.
> >
> >
> >
> > 73 Don, KI4D
> >
> > -----Original Message-----
> >
> > From: alexandriaradioclub-bounces at mailman.qth.net On Behalf Of rick
> >
> > Sent: Sunday, February 9, 2020 6:27 PM
> >
> > To: Scott
> >
> > Cc: alexandriaradioclub at mailman.qth.net
> >
> > Subject: Re: [Alexandria Radio Club Reflector] George Washington
> Birthday Parade 2020
> >
> >
> >
> > Scott,
> >
> >
> >
> >
> >
> > Many thanks.
> >
> >
> >
> >
> >
> > 73 Rick
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Get Outlook for Android
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > On Sun, Feb 9, 2020 at 6:09 PM -0500, "Scott" wrote:
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > count me in
> >
> > On Sun, Feb 9, 2020, 4:07 PM wrote:
> >
> > All,
> >
> >
> >
> >
> >
> >
> >
> > The George Washington's Birthday parade is February 17th.
> >
> >
> >
> > We have been asked to do what have done in the past. We need at least 12
> >
> >
> >
> > ham radio operators to support this effort.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Three missions
> >
> >
> >
> >
> >
> >
> >
> > 1 - Update the ORDER OF MARCH file with inputs from the
> >
> >
> >
> > Parade Marshals and send it from the Parade Start to the Reviewing Stand
> >
> >
> >
> >
> >
> >
> >
> > 2 - Provide safety communications from the marshals to
> the
> >
> >
> >
> > reviewing stand or to the parade organizers
> >
> >
> >
> >
> >
> >
> >
> > 3 - Provide situational awareness with ARPS operators at
> the
> >
> >
> >
> > start and end of the parade.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > ASSIGNMENTS
> >
> >
> >
> >
> >
> >
> >
> > REVIEWING STAND - 2 operators - Required AREDN unit
> (2.4Ghz
> >
> >
> >
> > Channel -2 ) we will need a few more units that can be installed in two
> >
> >
> >
> > positions to relay to the Trailer. The Trailer has a unit and I have a
> unit.
> >
> >
> >
> >
> >
> >
> >
> > Packet can be backup. An APRS display will be set up
> with
> >
> >
> >
> > the operators at the reviewing stand to allow relay positions to the
> >
> >
> >
> > reviewing stand officials
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > APRS
> >
> >
> >
> >
> >
> >
> >
> > Need two operators who can shadow marshals and go with
> the
> >
> >
> >
> > start and end of the parade. (TH-D72 or TH-74A)
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > PARADE MARSHALS SHADOWS.
> >
> >
> >
> >
> >
> >
> >
> > Need 5 operators with 2 meter or 440 HTs to work with the
> >
> >
> >
> > Division marshals. We don't have enough operators for all 10 or so
> >
> >
> >
> > divisions so we will position our shadows at points A, B, C, D, E and F
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > TRAILER
> >
> >
> >
> >
> >
> >
> >
> > 2 Operators, one to operator the computer to edit the
> order
> >
> >
> >
> > of march and send via AREDN or Packet to the reviewing stand.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Plan
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > 9 AM Operators will meet at the Fire
> >
> >
> >
> > Training Center Parking Lot, to help with the trailer and get handouts
> and
> >
> >
> >
> > briefing
> >
> >
> >
> >
> >
> >
> >
> > 9:30 AM Car Pool to the parade Start / End
> >
> >
> >
> > point (see attached maps)
> >
> >
> >
> >
> >
> >
> >
> > 11 AM Those assigned to shadow the
> >
> >
> >
> > marshals pare up with the marshals and assist with organizing the
> divisions
> >
> >
> >
> > and collect any changes (Bring paper)
> >
> >
> >
> >
> >
> >
> >
> > 1 PM Parade Start - Take changes to
> the
> >
> >
> >
> > trailer and provide them to the operator in the trailer so the order of
> >
> >
> >
> > march changes can be edited and sent via AREDN or Packet to the Reviewing
> >
> >
> >
> > Stand
> >
> >
> >
> >
> >
> >
> >
> > APRS operators should be
> at
> >
> >
> >
> > the START and END
> >
> >
> >
> >
> >
> >
> >
> > 2:30 Parade End
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > For ORDER OF MARCH.
> >
> >
> >
> >
> >
> >
> >
> > Division shadows (A, B, C, D, E and F) collect changes
> >
> >
> >
> > (ADDS, DROPS and REORDER)
> >
> >
> >
> >
> >
> >
> >
> > It is better if shadows wait until the divisions are in
> >
> >
> >
> > order and FINALIZED. Many units changes are LAST MINUTE. Once your SURE
> >
> >
> >
> > that you have a complete set of changes
> >
> >
> >
> >
> >
> >
> >
> > and they are written down so that the trailer operator can understand
> your
> >
> >
> >
> > notes, please take them to the trailer. Even if you have no changes go
> to
> >
> >
> >
> > the trailer and advise them.
> >
> >
> >
> >
> >
> >
> >
> > A final list will be provided at the 9AM briefing that SHOULD be the same
> >
> >
> >
> > one used by the marshals. You can make your notes on that list. ADD
> (put a
> >
> >
> >
> > note WHERE in the list they appear.
> >
> >
> >
> >
> >
> >
> >
> > DROPS - DID NOT SHOW BY 12:45. Change in order from where to where (from
> >
> >
> >
> > behind X to behind Y.
> >
> >
> >
> >
> >
> >
> >
> > We need ALL inputs by 1PM (Parade Start). It's a short parade. If we
> don't
> >
> >
> >
> > get the info in soon after 1 PM, we miss our timing.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > APRS Operators, If you are collect information above, make sure you get
> >
> >
> >
> > your into to the trailer by 12:45.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Reviewing stand
> >
> >
> >
> >
> >
> >
> >
> > Need a station that can work out of a vehicle parked BEHIND the reviewing
> >
> >
> >
> > stand. Advise the police that you are parade communications and they will
> >
> >
> >
> > let you park behind the reviewing stand.
> >
> >
> >
> >
> >
> >
> >
> > We will need at least two operators at the reviewing stand. One to work
> the
> >
> >
> >
> > digital (AREDN, PACKET, APRS) and one to handle voice communications.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > TRAILER
> >
> >
> >
> >
> >
> >
> >
> > 2 operators - Digital and voice.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Thiis will be a CONTROLED NET. Net Control will be either at the
> Reviewing
> >
> >
> >
> > Stand or the Trailer.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > Frequencies
> >
> >
> >
> >
> >
> >
> >
> > APRS -144.39
> >
> >
> >
> >
> >
> >
> >
> > PACKET 145.05
> >
> >
> >
> >
> >
> >
> >
> > SHADOWS 444.6 SIMPLEX
> >
> >
> >
> >
> >
> >
> >
> > TRAILER TO REVIEWING STAND 446.5 SIMPLEX
> >
> >
> >
> >
> >
> >
> >
> > BACKUP is the 146.655 REPEATER (141.3 PL)
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > If you can support the parade, please send Rick, N4ASX. If you CANNOT,
> I
> >
> >
> >
> > would like to hear from you as well.
> >
> >
> >
> >
> >
> >
> >
> > N4ASX at COX.NET
> >
> >
> >
> >
> >
> >
> >
> > (703)317-9305
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > If you have any questions, please get in touch with me.
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> >
> > 73 Rick
> >
> >
> >
> >
> >
> >
> >
> > N4ASX
> >
> >
> >
> >
> >
> >
> >
