[ADXA] Morroco QSL Card

[sbranyan at cox.net]

Thanks, Rick, for the spot. Can't use 15m at the moment.

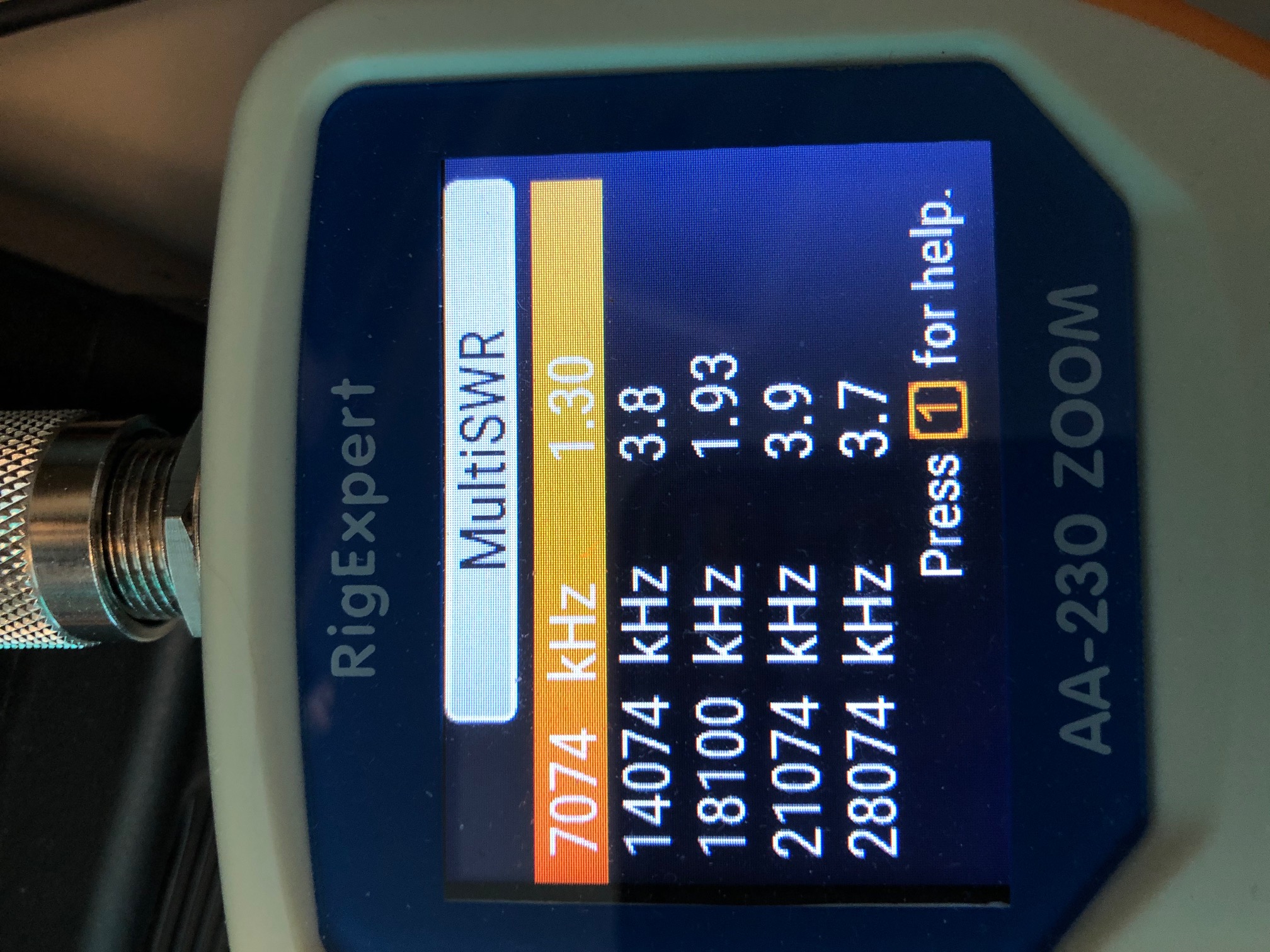

I have a G5RV and here's a pic of SWR on it for all except 80m. I've damaged my TS-480 running it on the high SWR bands at high power settings (80-90w) for DX on ft-8. It doesn't smoke, but smells like burning metal when I try to transmit. Opened the case and there is no sign of burned circuitry, but the TX boards have the smell I was smelling. I'll be sending it in for repair.



I discovered a few weeks ago when I noticed unusually high SWR on the power meter and I could not make a simple contact, the Alpha Delta arrestor on the antenna had shorted out. I replaced the fuse, and it was better, but when I by-passed the whole arrestor, the SWR was a point lower on all bands. It had been up to 4-4.5 on 15m and about 5.5 with the blown fuse. So I'm not a fan of the arrestors any more. Seems they can cause issues even with a good fuse. I was using the 2KW version, so maybe I should have been using the 500KW one.



Anyway, I had already ordered an IC-7100 for portable use and as a backup. It doesn't have a tuner, so I'm careful to keep it under 50 watts and only on 40m where the SWR is 1.5 or less.



In the meantime, I also have a new PAR Quad Band Half Wave End Fed to put up over the holidays. So I'll have a well tuned 40-20-15-10m antenna. Need to come up with a 80m homebrew dipole so I can finish DXCC on 80m.



Any other tips appreciated.



73,

Scott/W5AAJ











From: k5ur at aol.com [mailto:k5ur at aol.com]
Sent: Tuesday, December 1, 2020 11:49 AM
To: sbranyan at cox.net
Subject: Re: [ADXA] Morroco QSL Card





Still after Western Sahara and Mali

Scott, TZ1CE is on 21.028. You mentioned that you were limited to 40 meters, if you are using a 40 meter dipole, it will tune on 15 so give it try.



73,

Rick - K5UR



-----Original Message-----
From: sbranyan at cox.net
To: ADXA <adxa at mailman.qth.net>
Sent: Mon, Nov 30, 2020 6:00 pm
Subject: [ADXA] Morroco QSL Card

Hope everyone had a great Thanksgiving.



Received a card for 5E1EC (commemorative call for CN8EC) today for a FT4 contact on 20m from the end of October via a Russian QSL manager.



Still after Western Sahara and Mali that have been showing up recently, but I'm limited to 40m at the moment.



73,



Scott/W5AAJ
