[600MRG] 735 mods

[Edward R Cole]

Like this?

At 08:19 AM 1/26/2018, Dick Bingham wrote:
>Ah, it has been years since I read about the escapades of "Need new
>thread for this one, Hon Ed. sez my sidekick, Hashtafisti
>Scratchie!!! Today, the PC-Police would be all-over that column.
>
>For those reading this thread about RX/TX on 630-meters, receiving
>and virtual direct read-out of frequency is easily accomplished by
>tuning a tranceiver to 30-meters and using a doubly balanced mixer
>(DBM) and an external 10MHz LO .
>
>Connect a suitable antenna-wire directly to the DBM input port, a
>10MHz source to the LO port and the DBM IF-port  to the antenna port
>of the xceiver. Tune the tranceiver to 10.4xxMHz (ignore the leading
>"10" and look only at the digits following the decimal-point to read
>the 630-meter frequency)  and you are listening to 630 meters.
>Potential for lots of birdies without an input tuner but you will
>have a decent receiver for the new band.
>
>TX on 630m is similarly easy if your tranceiver has low power
>transverter ports. Appropriate BPF's and an amplifier puts you on
>630m. City-lot antenna installations will be your main challenge on 630m.
>
>Get busy and join the fun!
>
>73 Dick/w7wkr and wd2xsh-26
>
>
>
>On Jan 26, 2018, at 8:12 AM, Dave Riley
><<mailto:dave.riley3 at verizon.net>dave.riley3 at verizon.net> wrote:
>
>>Need new thread for this one, Hon Ed. sez my sidekick, Hashtafisti
>>Scratchie!!!
>______________________________________________________________
>600MRG mailing list
>Home: http://mailman.qth.net/mailman/listinfo/600mrg
>Help: http://mailman.qth.net/mmfaq.htm
>Post: mailto:600MRG at mailman.qth.net
>
>This list hosted by: http://www.qsl.net
>Please help support this email list: http://www.qsl.net/donate.html

73, Ed - KL7UW
   http://www.kl7uw.com
Dubus-NA Business mail:
   dubususa at gmail.com
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/600mrg/attachments/20180126/ce4ba275/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

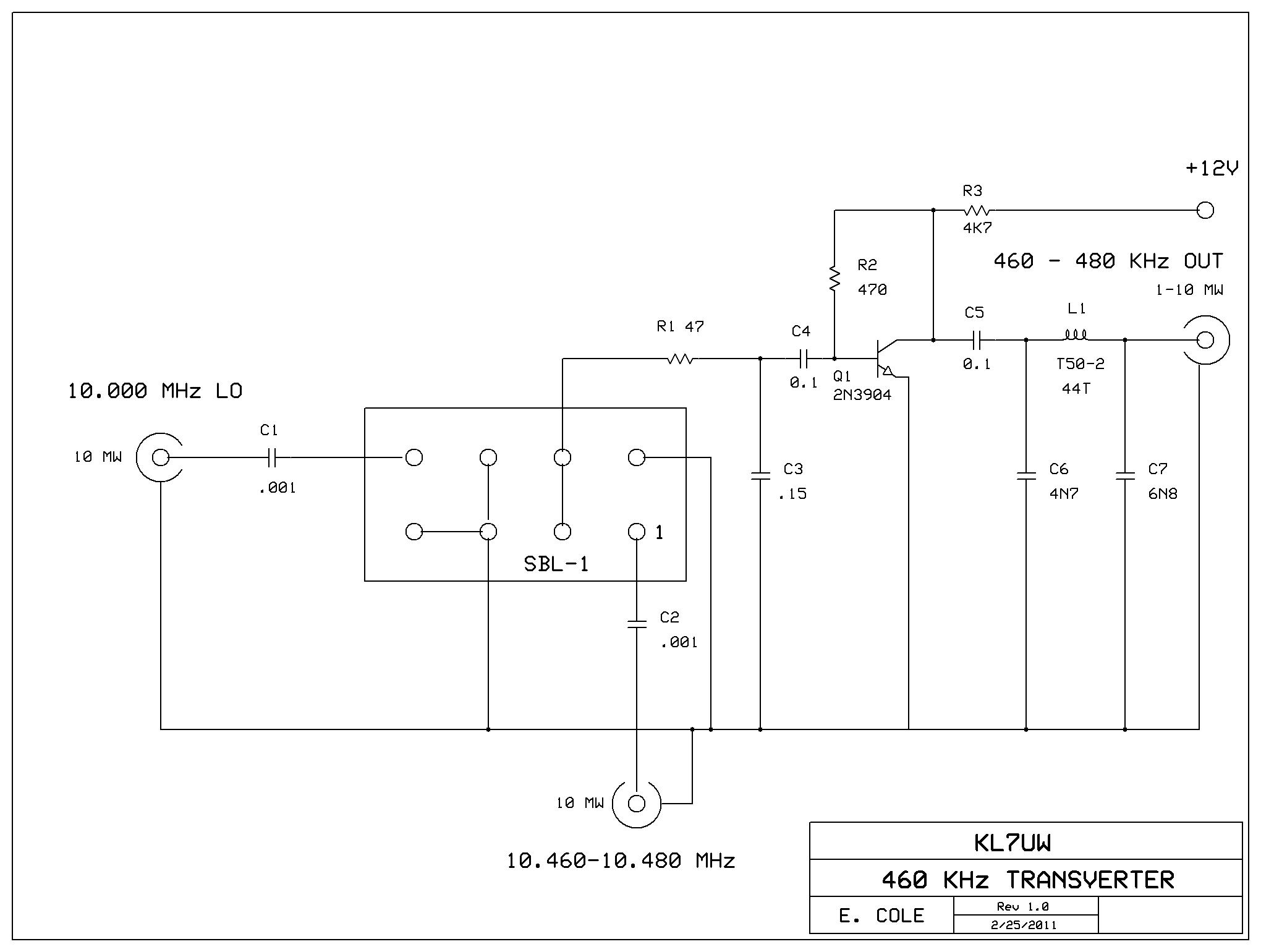

Name: 600m_XVTR.jpg
Type: image/jpeg
Size: 147023 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/600mrg/attachments/20180126/ce4ba275/attachment-0001.jpg>
